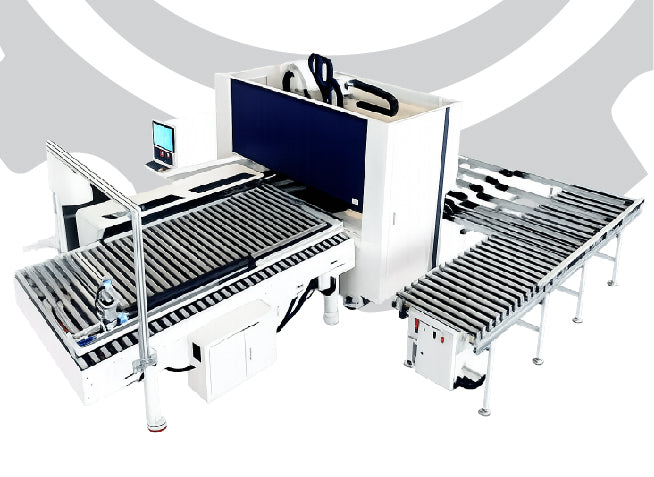

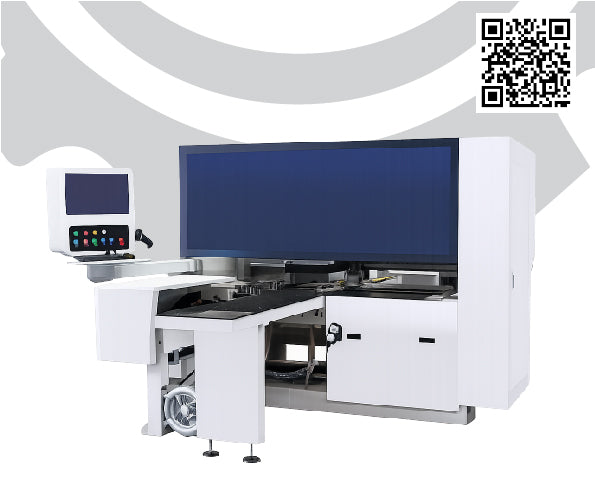

PT6.8-1225-AR

The machine is designed for a maximum processing width of 1200 mm (board width) and a minimum processing size of 40 × 180 mm.

It is equipped with one upper spindle (3.5 kW) and one lower spindle (3.5 kW).

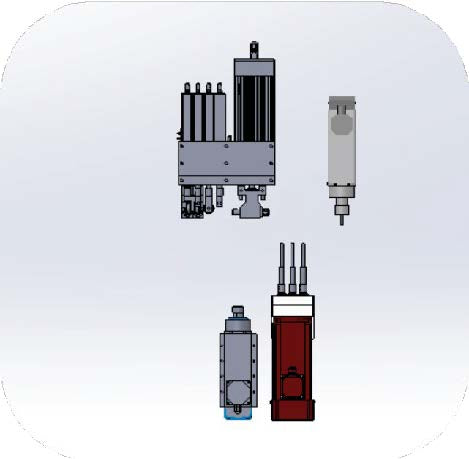

The drilling configuration includes a 12 vertical + 8 horizontal (12V + 8H) upper drilling head and a 9 vertical (9V) lower drilling head.

The reducer is from Japan Shimpo.
Transmission components include a rack system and drive screw mechanism, with a frequency-controlled conveyor system.

Main electrical components are supplied by Schneider, while key mechanical components include Germany Rotalin, Taiwan TBI, Hippo, and Monte.
Main pneumatic components are from SMC and Airtac.
The machine is equipped with an American ZEBRA wireless scanner.

Axis Travel:

• X-axis: 3000 mm

• Y-axis: 1500 mm

• Z-axis: 200 mm

Axis Speed:

• X-axis: 130 m/min

• Y-axis: 85 m/min

• Z-axis: 25 m/min

Machine Dimensions:
3050 × 5700 × 2600 mm

Machine Weight:
3800 kg

Power Requirements:
3 Phase AC 380V / 50Hz
Air pressure ≥ 0.65 MPa
Total power: 22 kW

Air Consumption:
800 L/min

Dust Collector Flow Rate:
500 m³/h
