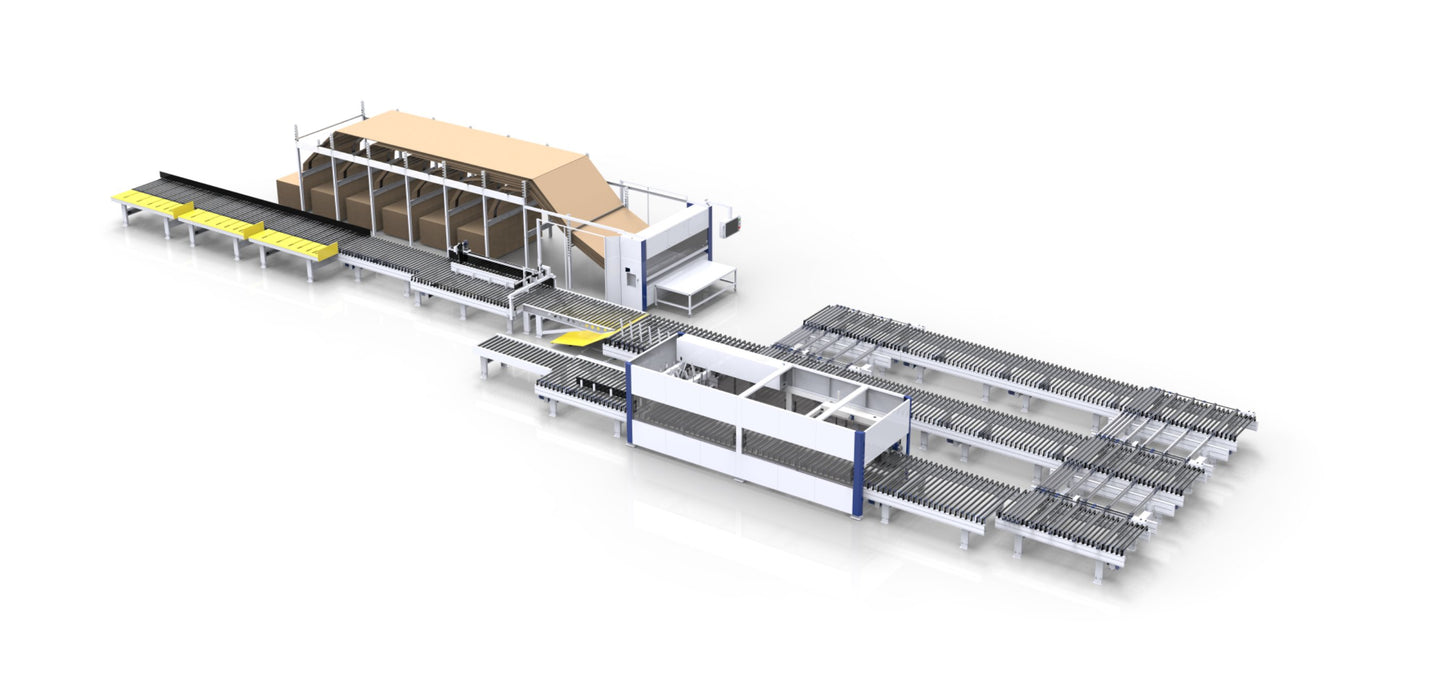

CARTON CLOSING MACHINE

Cutting Box Size Range
Carton Width: 250-1200mm
Carton Lenght: 300mm or more
Carton ikness: 25-600mm
Single Layer Corrugated /
Double Layer Corrugated: ickness / 2.0 - 7.0mm
Corrugated Papper Stack Quantity: 1 - 6 (Stack)
Corrugated Papper Stacking Range: 800-2500mm
e Fastest Speed of Horizontal Cutter: 90m/min
Longitudinal Cutter Fastest Speed: 90m/min
Horizontal Cutter Motor Power: 750kw
Longitudinal Cutter Motor Power: 400W*8
Feeding Motor Power: 4.3kw
Material Selection Motor Power: 1.5w
Rated Total Power: 10Kw
Productivity: 4-8 Pieces/min
Compressed Air Working Pressure: P=0.5-0.6Mpa
Equipment Size Approx: Lenght 15500X - Width 3800*3000
Machine Weight Approx: 3000Kg
