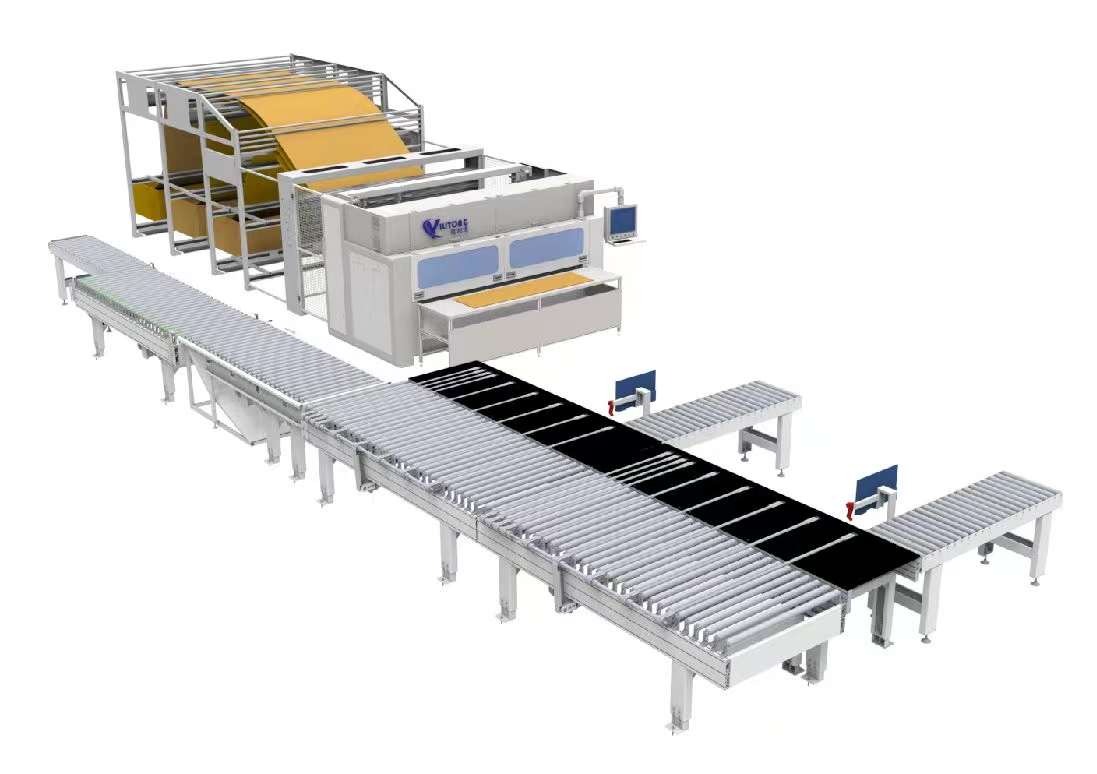

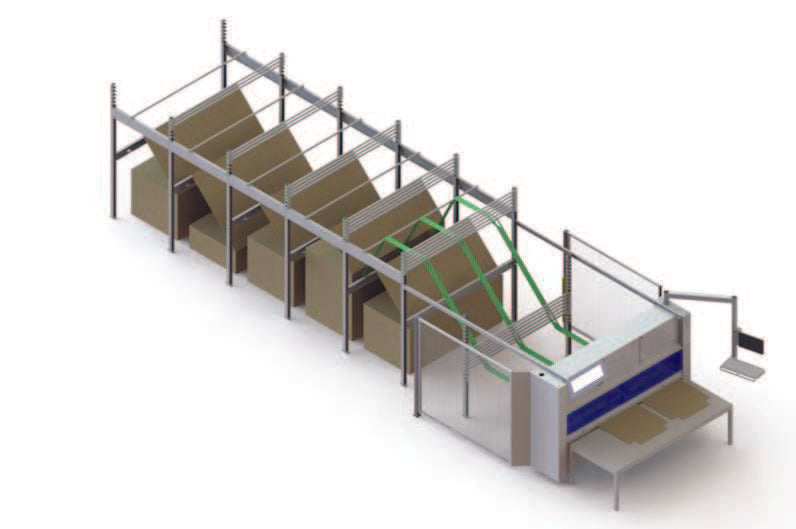

CARTON PACKING MACHINE

CLICK HERE TO DOWNLOAD PDF FILE

CUTTING BOX SIZE RANGE
CARTON WIDTH: 250-1200MM
CARTON LENGTH: 300MM OR MORE
CARTON THICKNESS: 25-600MM
SINGLE LAYER CORRUGATED/DOUBLE LAYER CORRUGATED: THICKNESS/2.0-7.0MM
CORRUGATED PAPER STACK QUANTITY: 1-6 (STACK)
CORRUGATED PAPER STACKING RANGE: 800-2500/MM
THE FASTEST SPEED OF HORIZONTAL CUTTER: 90M/MIN
LONGITUDINAL CUTTER FASTEST SPEED: 90M/MIN
HORIZONTAL CUTTER MOTOR POWER: 750W
LONGITUDINAL CUTTER MOTOR POWER: 400WX8
FEEDING MOTOR POWER: 4.3KW
MATERIAL SELECTION MOTOR POWER:1.5W
RATED TOTAL POWER: 10KW
PRODUCTIVITY:4-8 PIECES/MIN
COMPRESSED AIR WORKING PRESSURE: P =0.5-0.6MPA
EQUIPMENT SIZE APPROX.: LENGTH 15500X WIDTH 3800X3000
MACHINE WEIGHT APPROX.: 3000KG
