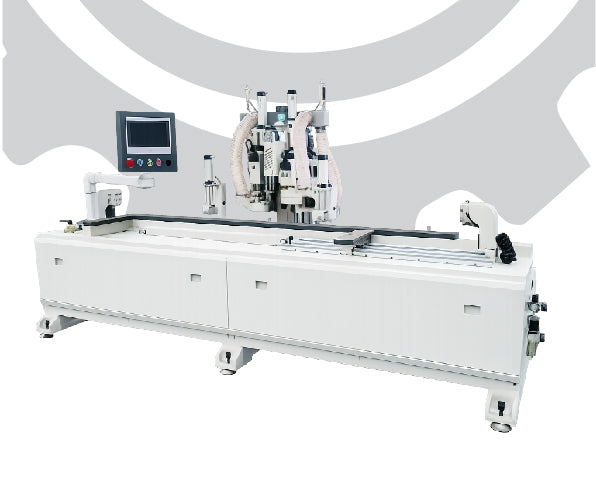

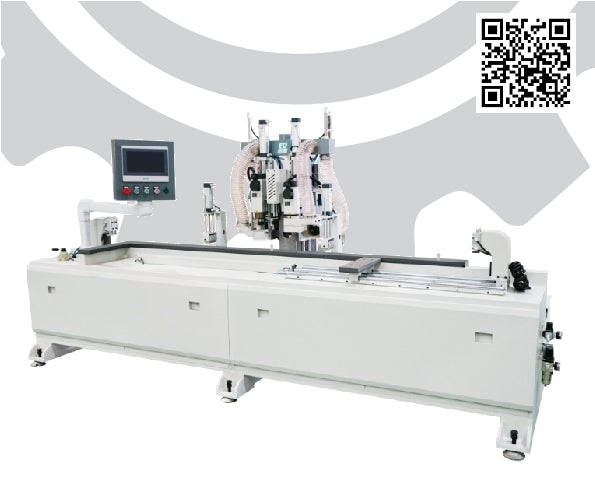

CNC DOOR D1-E-AR

• The compact machine body integrates multiple processing functions, including lock slot, lock step, lock hole, hinge hole, paint hole, and door closer hole. All these operations can be completed on the same machine (the wooden door must be manually turned during processing).

• The pressing roller position is automatically adjusted according to the door length, preventing cylinder damage caused by the roller impacting the edge of the door panel.

• The lock body processing program is fully parameterized, allowing the machine to meet various lock body processing requirements.

Door Length (Max): 3000 mm
Door Thickness (Max): 70 mm
Air Pressure: 6 – 8 bar

Lock Hole Spindle: 3.5 kW, 2.2 kW
Lock Slot Spindle: 4.5 kW, 2.2 kW

Control System: XINJE
Touch Screen: XINJE
Servo System: XINJE

Total Power: 8 kW

Machine Dimensions: 3800 × 1500 × 1600 mm
