Ar Machinery

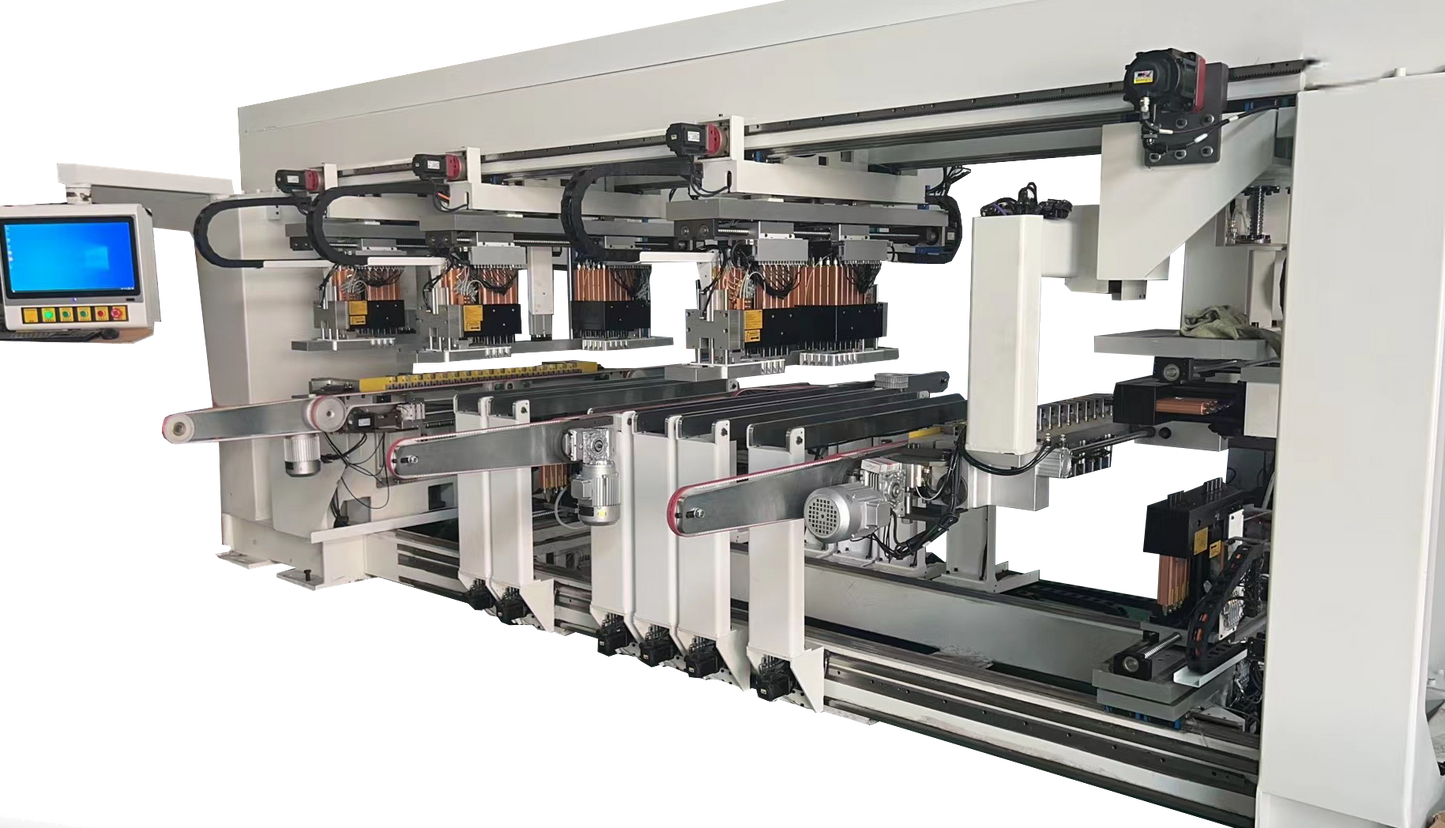

FEED THROUGH BORING YZZ7P6M-AR

FEED THROUGH BORING YZZ7P6M-AR

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out

YZZ7P6M-AR

  • CLICK HERE TO DOWNLOAD PDF FILE
  • Working width: 96-1056mm
  • Working length: 380-2750mm
  • Feed speed: 35m/min.
  • Working thickness: 9-40mm
  • Upper vertical drill: 14x3x2
  • Upper horizontal drill: 2x3x2

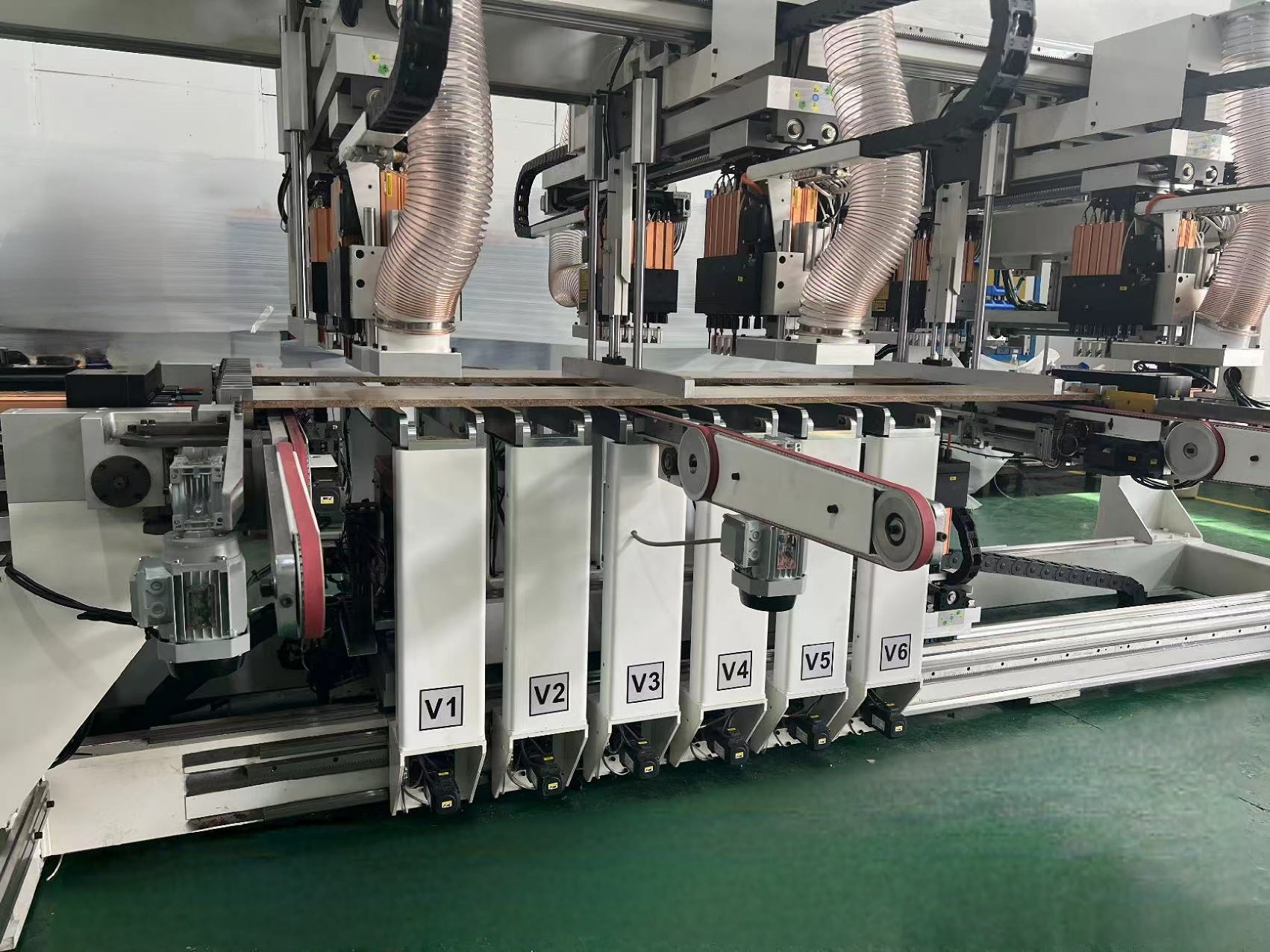

  • Vertical drill: 8 drills x2 bag
  • Horizontal drill: 8 drills x2 bag
  • Max. long drill dimension: Φ15mm (optional per needs)
  • Feed motor power: 0.37kwx6
  • Working air pressure: 0.6-0.8mPa

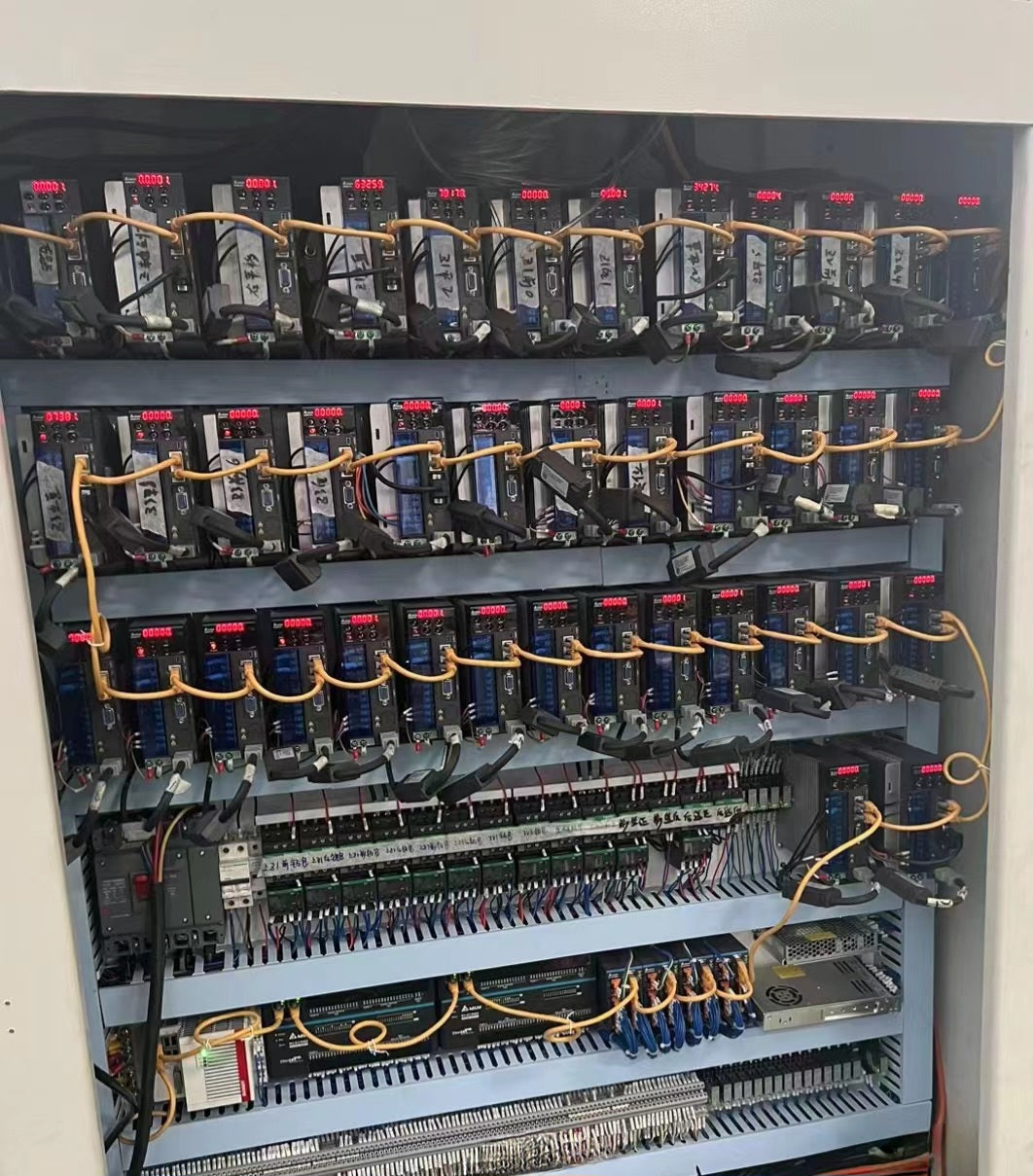

  • Servo: DELTA
  • System: Beckhoff
  • Drill bag: Protean.
  • AC contactor: Schneider
  • Air switch / Relay: Schneider
  • Guide rail/gearbox: FASTON.
  • Pneumatic element: Airtacs
  • PLC: DELTA
  • Triad: Airtacs
  • Air conditioner: Shanghai Jingyang
  • Machine size: L5980*W3050*H2600mmTotal power: 54.67kw.
  • View More:
  • https://youtu.be/dSmdRyYNPls
