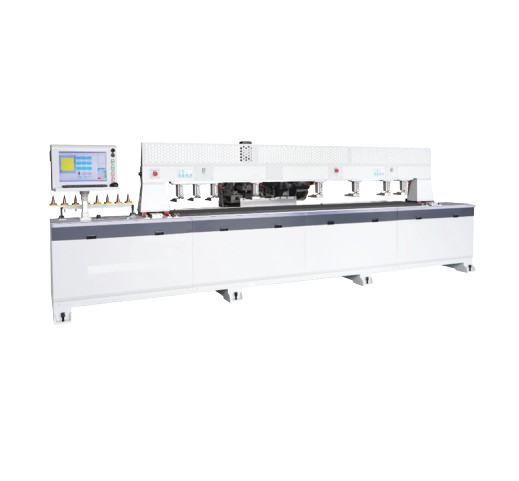

CABINET DOOR CNC MACHINE M1-PRO

CABINET DOOR CNC MACHINE M1-PRO

• CLICK HERE TO DOWNLOAD PDF FILE
• Working Length Max: 3050mm
• Effective width processing range: 0-180mm
• Thickness Max: 60mm.

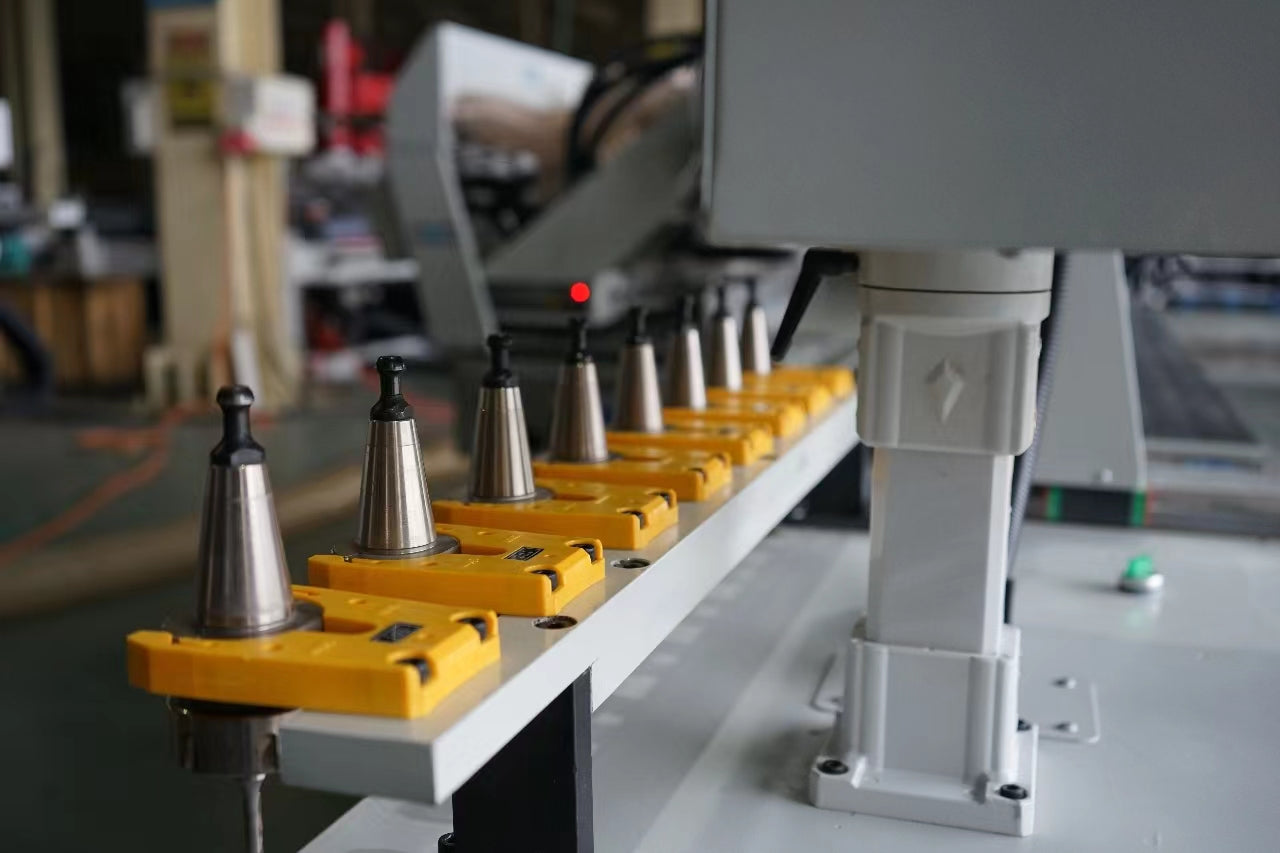

• Automatic Tool Changer: 6KW, 8 ISO30 Linear

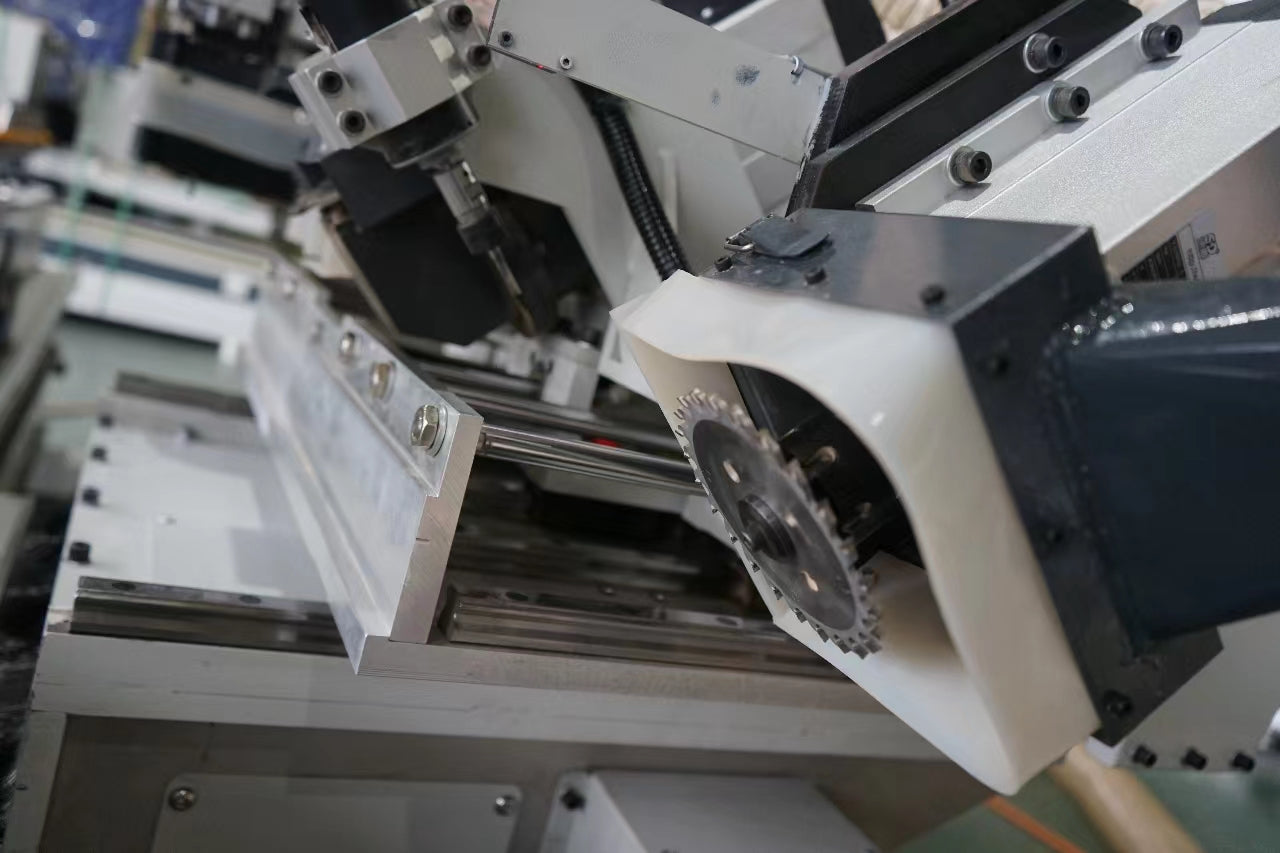

• Evel edge 45° Lamello saw blade spindle: 2.2KW
• Bevel edge reverse 45° Lamello P10/P15 6mm: 800W

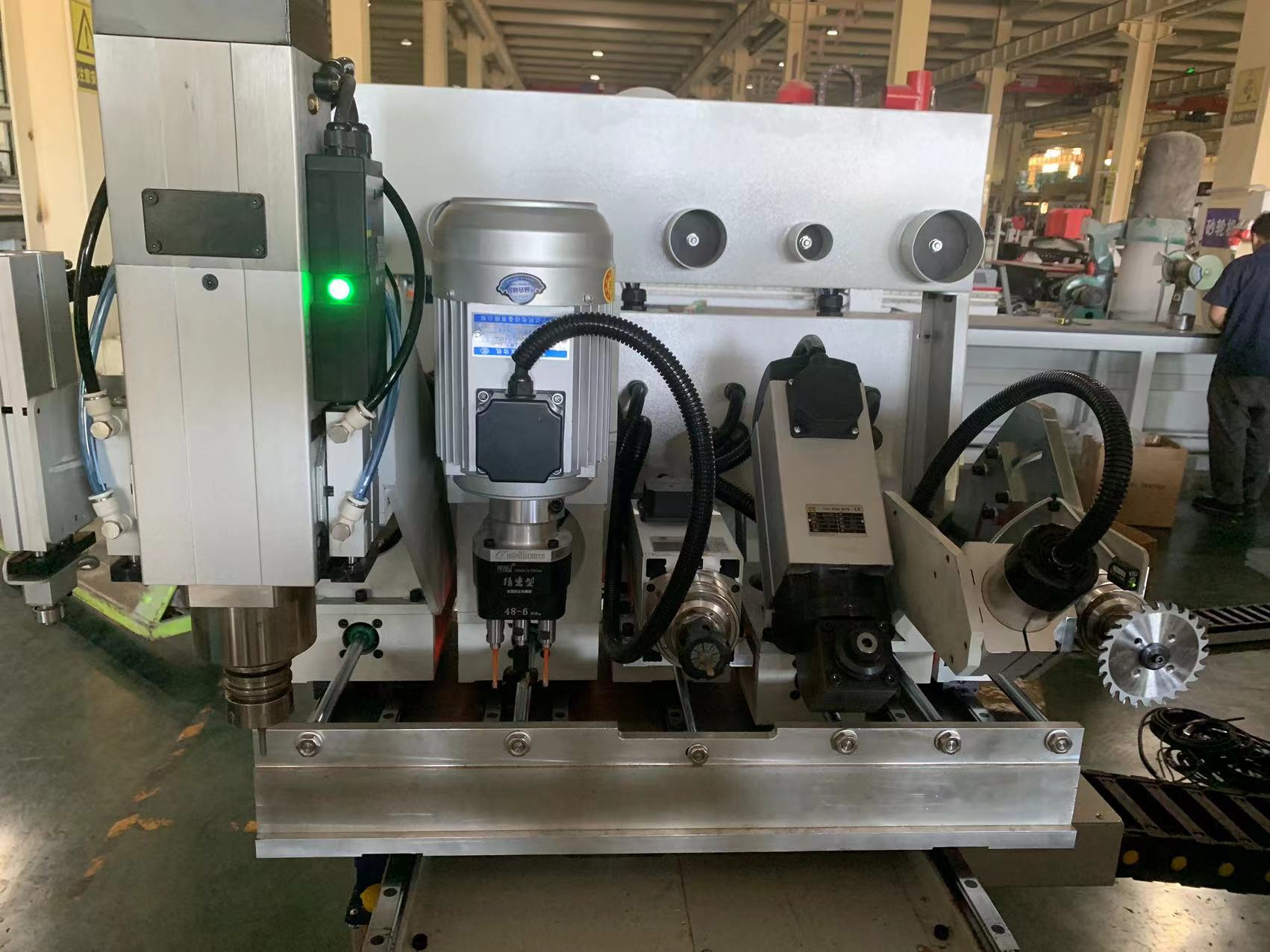

• Horizontal Spindle: 4.5KW
• Side level, 45° adjustable spindle: 4.5KW
• Hinge Motor: 1.5KW
• Machine Power: 14KW
• Machine Size: 5200*1700*1700mm
• Gross Weight: 2000kg
