PAINTING ROOM + DRYING ROOM
PAINTING ROOM + DRYING ROOM
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
per
- CLICK HERE TO DOWNLOAD PDF FILE

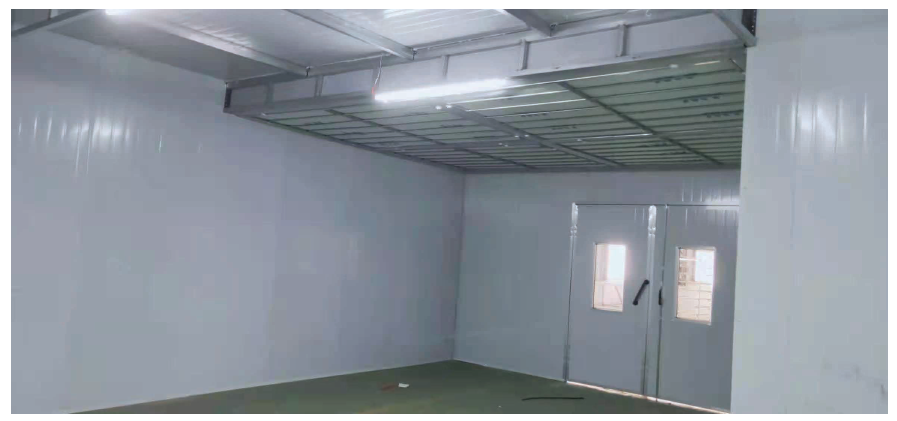

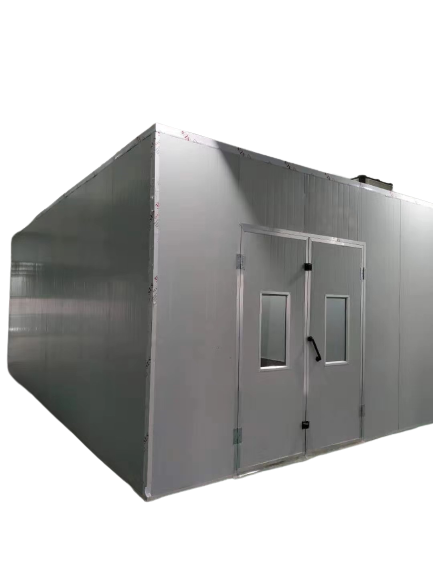

- Painting room: 4000mmx4000mmx3000mm.
- The main body is made of 50mm flame-retardant foam board, with thickness of the iron sheet 0.5mm.
- Main beam welded galvanized square tube (double layer).
- VF600 three-dimensional glue filter cotton.
- Top inlet fan 1.5kw.
- Led shadowless light box.
- Side by side doors 2200x3000mm.

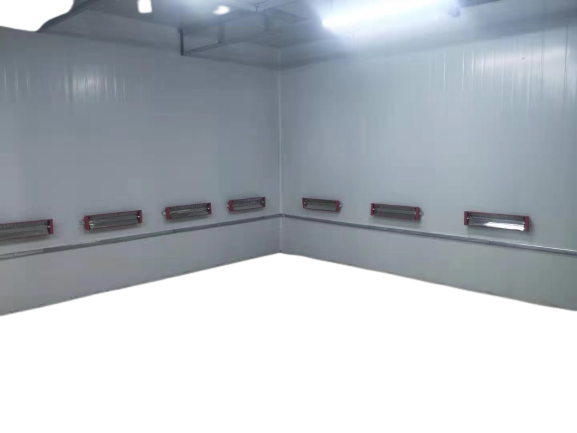

- Drying room: 6000mmx4000mmx3000mm.
- The main body is made of 50mm flame-retardant foam board, with thickness of the iron sheet 0.5mm.
- Main beam welded galvanized square tube (double layer).
- VF600 three-dimensional glue filter cotton.
- Top inlet fan 1.5kw.
- Led shadowless light box.
- 2 side by side doors 2200x3000mm.
- Heating tubes, 8 groups.

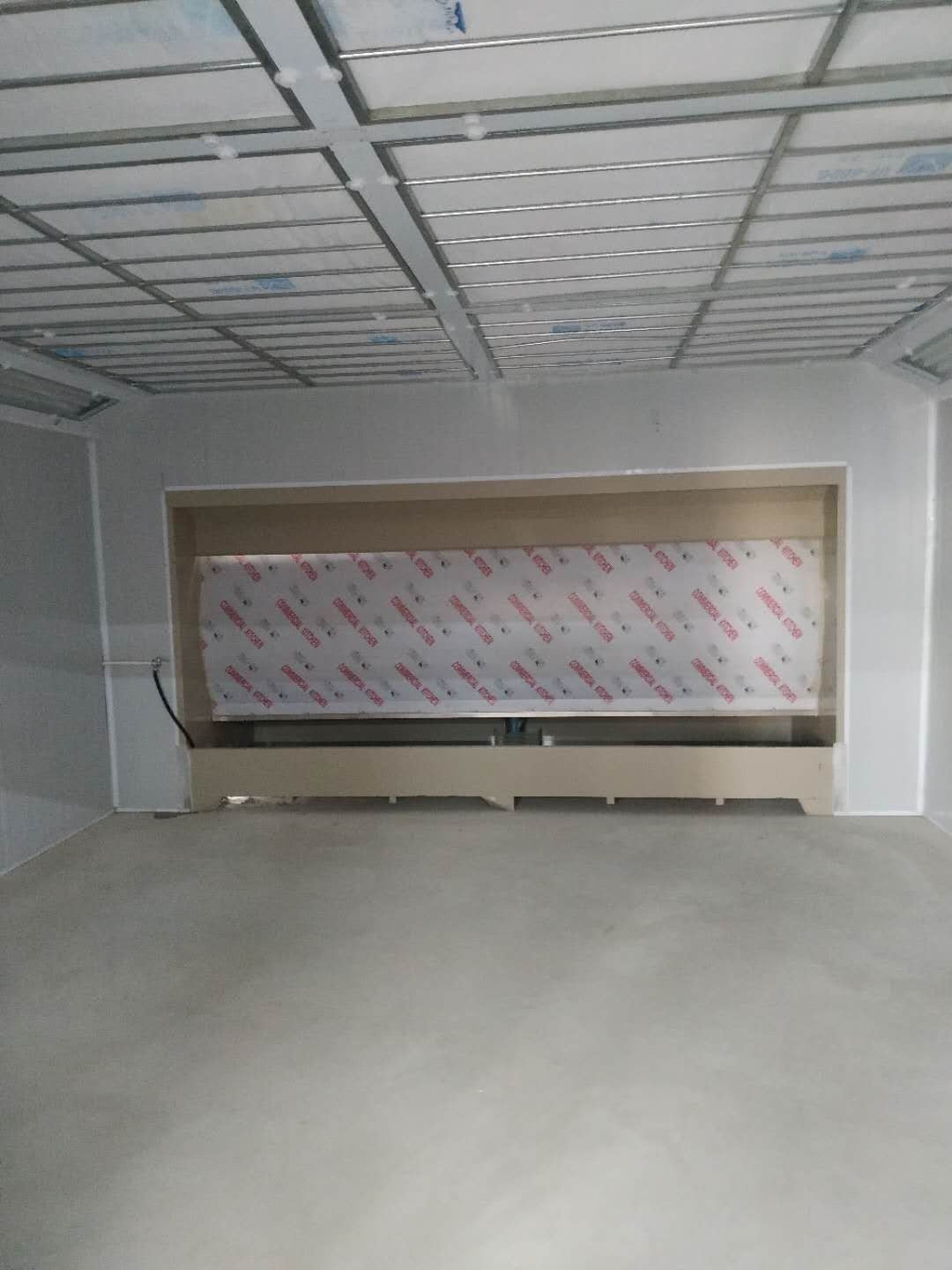

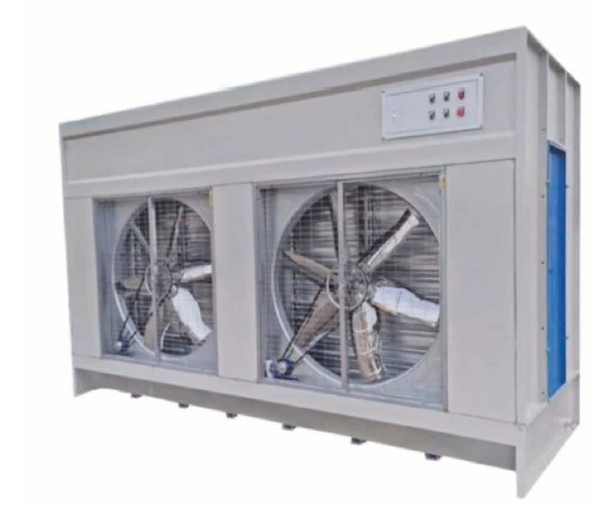

- Water curtain: 2000x1150x2000mm.
- Shell material, galvanized sheet spray 1.2mm.
- Flow panel stainless steel.
- Selfe priming sewage pump 1.1kw.
