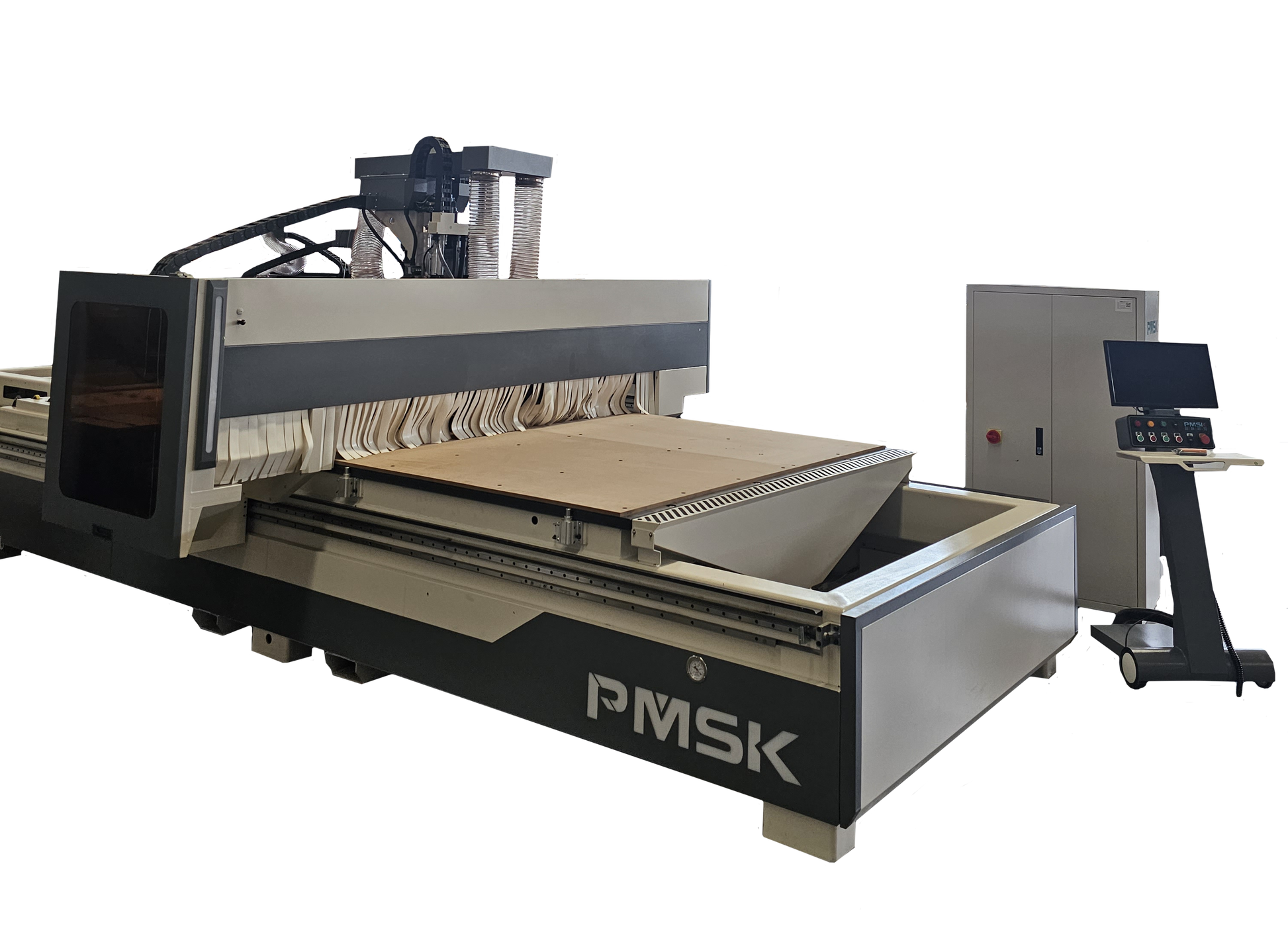

PNEST 2137-P-AR

PNEST 2137-P-AR

• CLICK HERE TO DOWNLOAD PDF FILE
• Max Panel Length: 3700mm
• Max Panel Width: 2100mm
• Z Working Area: 320mm
• Main Spindle: HQD 9Kw Air Cooling
• Drilling Head: CC 9 Vertical
• Automatic Tool Change: Linear 12 Positions (on y gantry)
• Presetter (Automatic Tool Measurement): Enabled
• Vacuum Pump: 250m³/h 11KW Water System
• Maximum Working Speed While Nesting: 35m/min
• Automatic Vacuum Zone Control: 6 Different Zone Controlled from Screen
• Control: Syntec New Version (21inch Screen+ Simulation Enabled Wireless Keyboard and Mouse Network Connection to Office Enabled)
• Drive System: DELTA servo Mechatrolink 750w.
• Electrical Components: Siemens + Schneider
• Rack: Imported From Germany

• Control Program Support: ARTCAM, CABINET VISION, POLYBOARD, KNEST, ALPHACAM, MASTERCAM, WOODWOP...

• Automatic Labeling System: ZEBRA Automatic Printer

• Worklist + Opticut Integration

• Net Weight: 3600 Kg
