14 PRODRILL PT6.7-1325-AR

PRODRILL PT6.7-1325-AR

• CLICK HERE TO DOWNLOAD PDF FILE
• Processing size: X axis travel, 3000mm
• Processing size: Y axis travel, 1500mm
• Processing size: Z axis travel, 200mm
• Maximum feed: X axis speed, 130m/min
• Maximum feed: Y axis speed, 1200m/min
• Maximum feed: Z axis speed, 25m/min

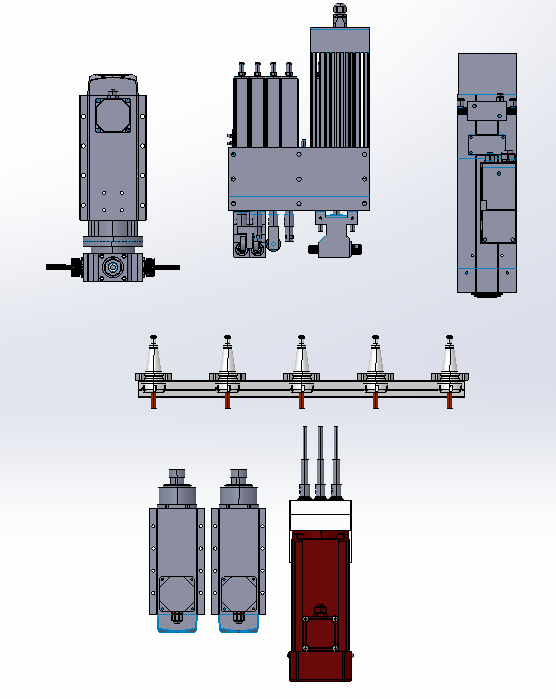

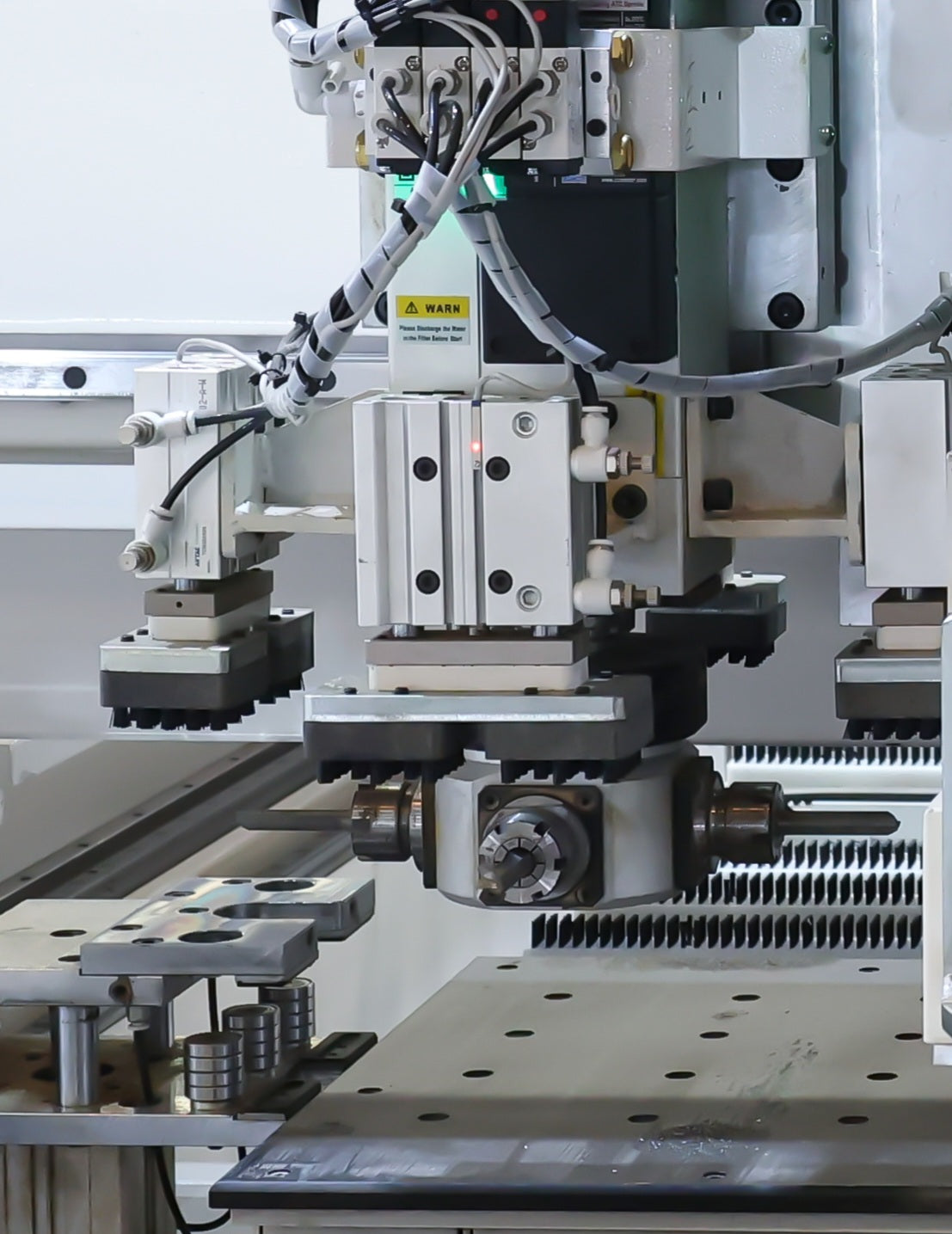

• 1* upper spindle: 6KW ATC CC
• 2* Lower spindle: 3,5KW CC
• Upper roll drill model: 12V + 8H CC brand
• Lower row drill model 9V CC brand
• Reducer: Japan Shimpo
• Transmission rack: Germany rotalin
• Drive screw: Taiwan TBI
• Frequency conveyor: Hippo Monte
• Main electrical components: Schneider
• Maximum processing size: 1200mm (board width)
• Minimum processing size: 40*180mm
• Main pneumatic components: SMC & Airtacs, 12V+8H (upper 1) CC
• Wireless scanner: American ZEBRA
• Countertop structure: Air floating HPL + chrome plated.

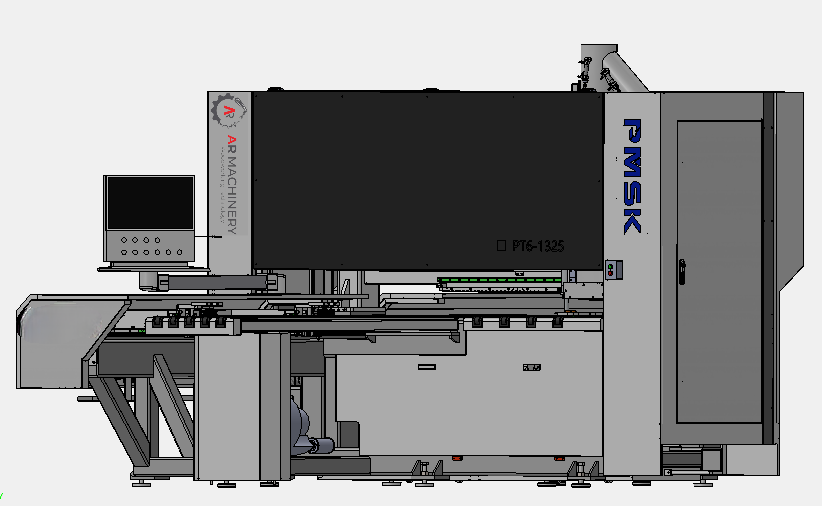

• Machine dimension: 3050*5700*2600mm
• Machine Weight: 3800kg
• Working Voltage, air pressure, power: 3PH AC380V/50HZ, ≥0.65Mpa,22KW
• Air Consumption: 800 l/min
• Dust Collector flow rate: 500m³/H

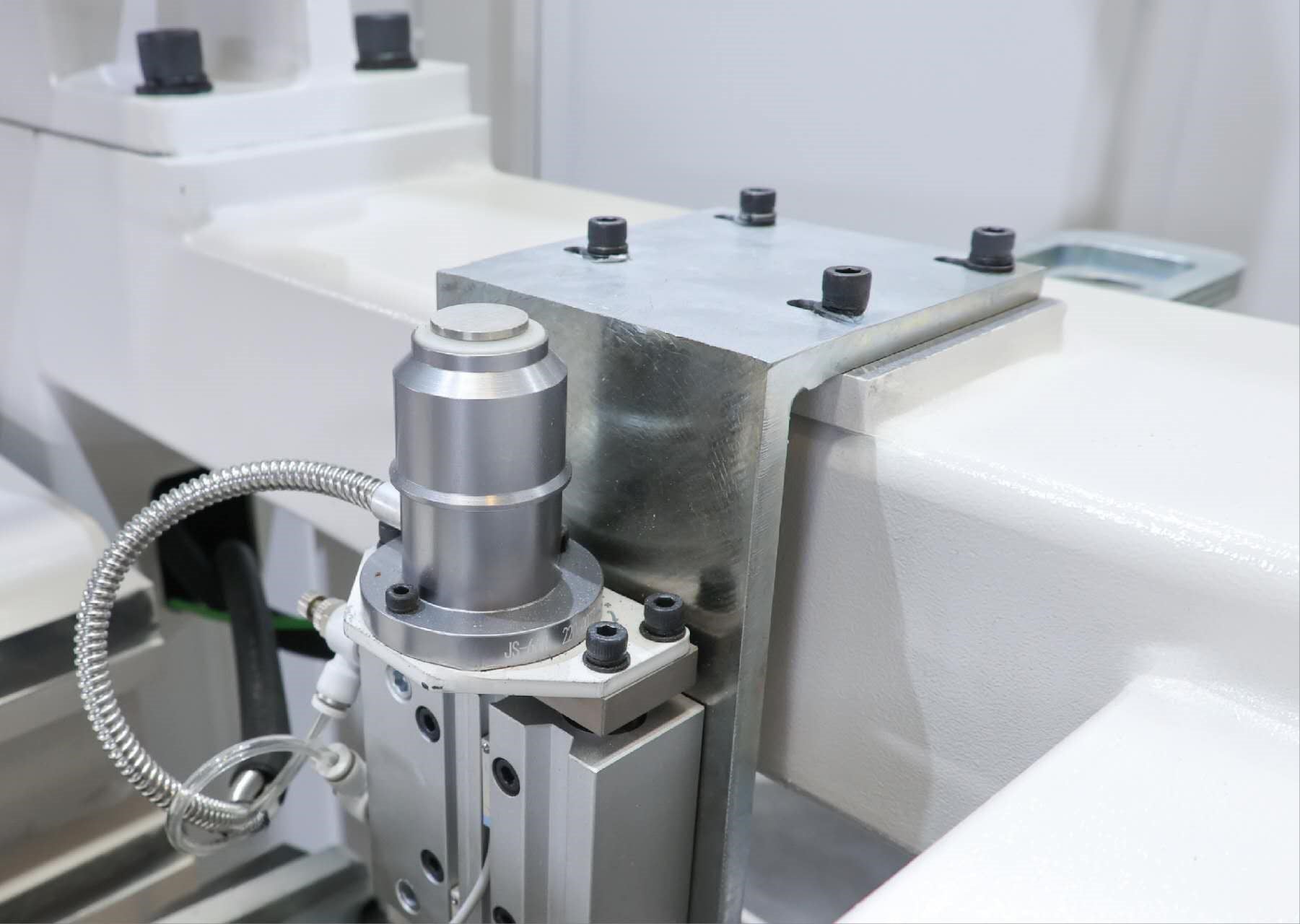

• Presetter for automatic tool measurement: Enabled
• Automatic magazine tool change: 6* Linear automatic
• Fixed Main Spindle: 4 horizontal side.
