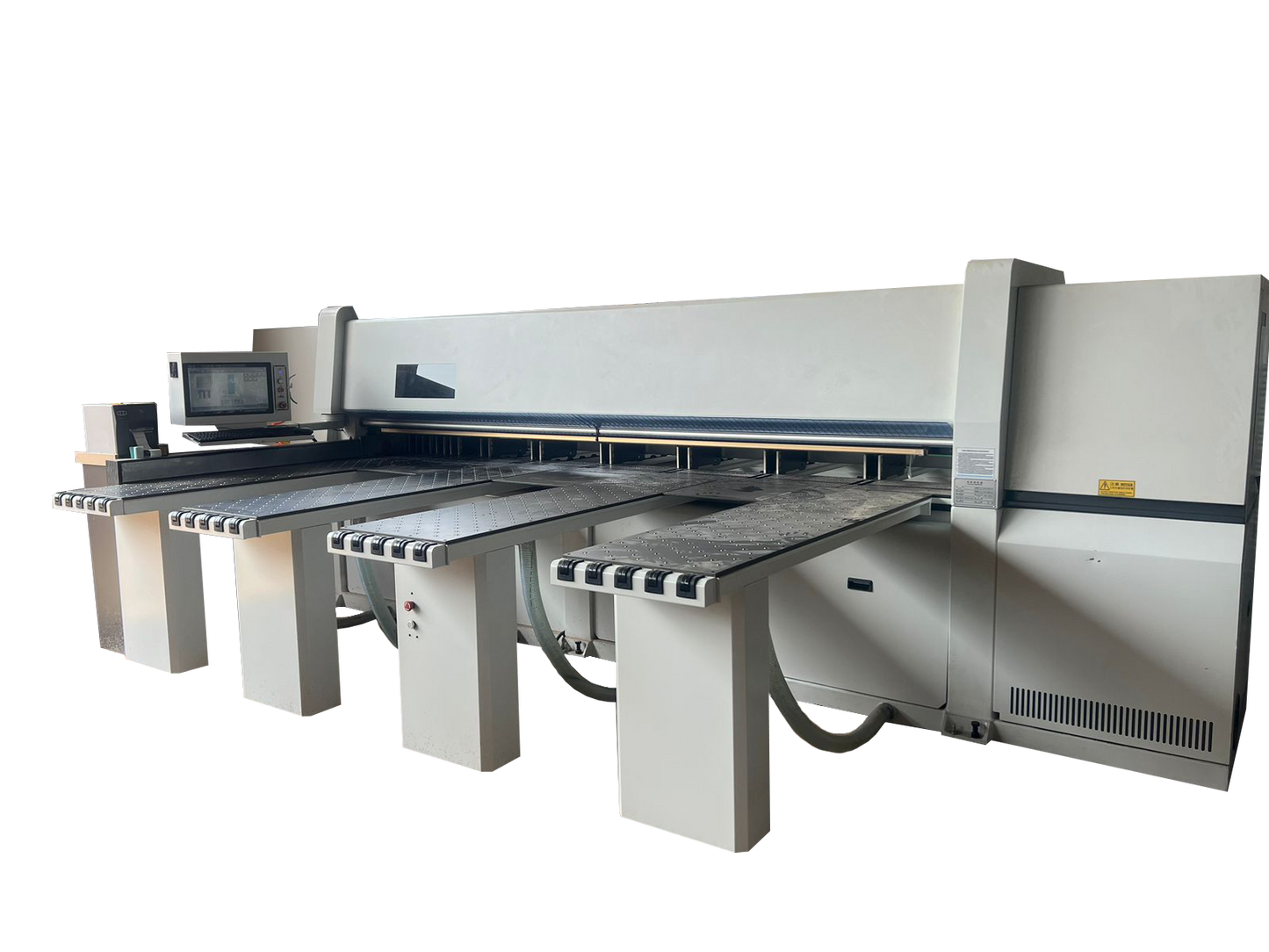

11 PROSAW SK3800-S-AR

11 PROSAW SK3800-S-AR

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
  • CLICK HERE TO DOWNLOAD PDF FILE
  • Working size 3800x3800mm
  • Saw carriage cutting speed 80m/min.
  • Saw carriage backward speed 100m/min.
  • Maximum cutting thickness 90mm (5*18mm)
  • Pusher maximum speed 65m/min

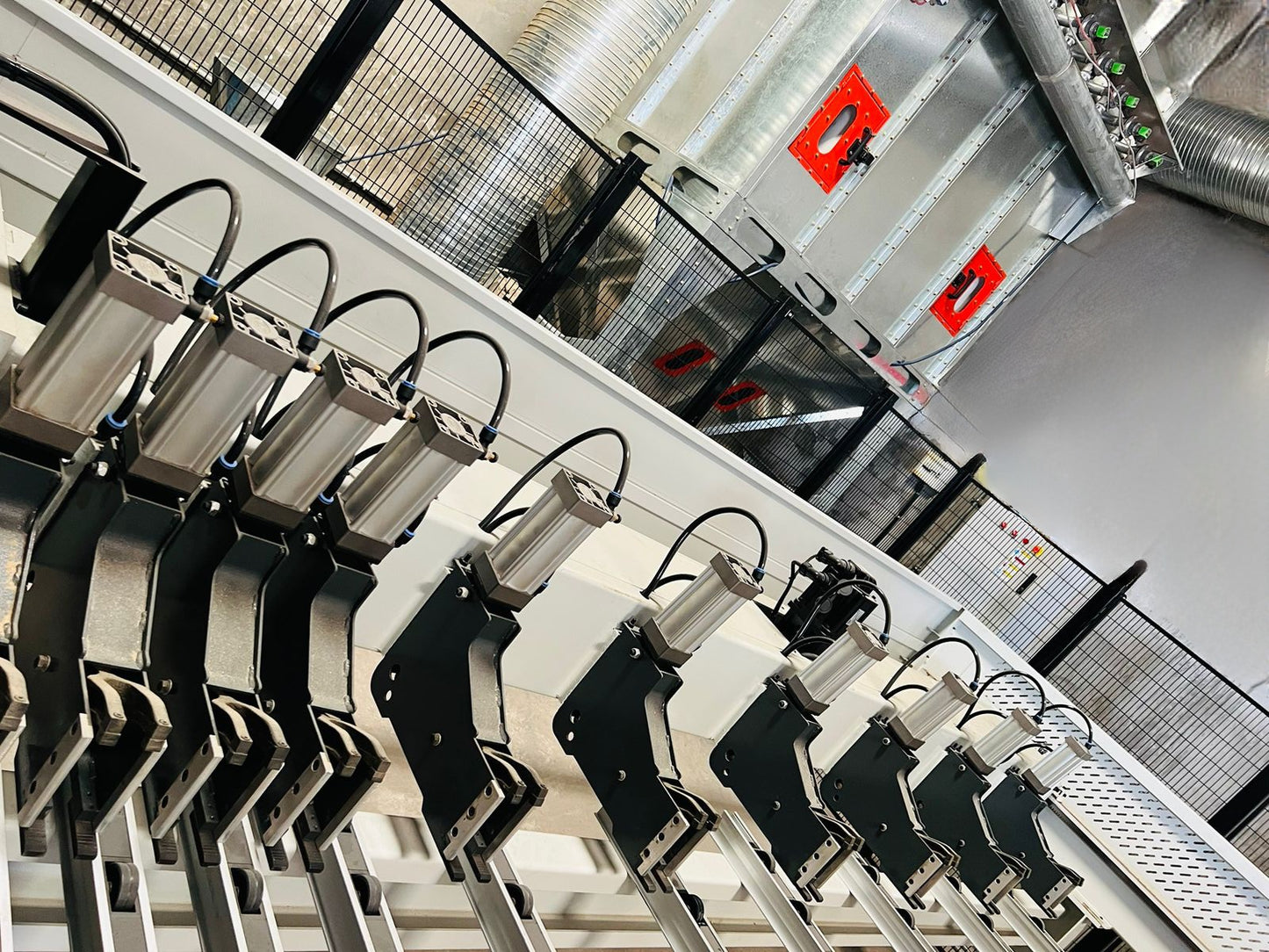

  • 10 double head clamps
  • Servo motor and drive pusher 2Kw

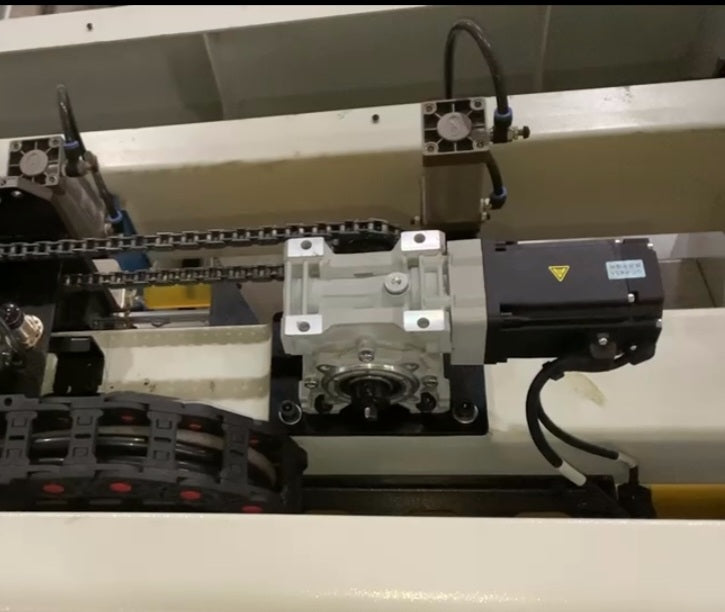

  • Servo motor and drive saw carriage 2Kw
  • Servo motorized side aligner
  • Independant scorer and main blade
  • Shneider and siemens electrical components
  • 4 main table length 1800

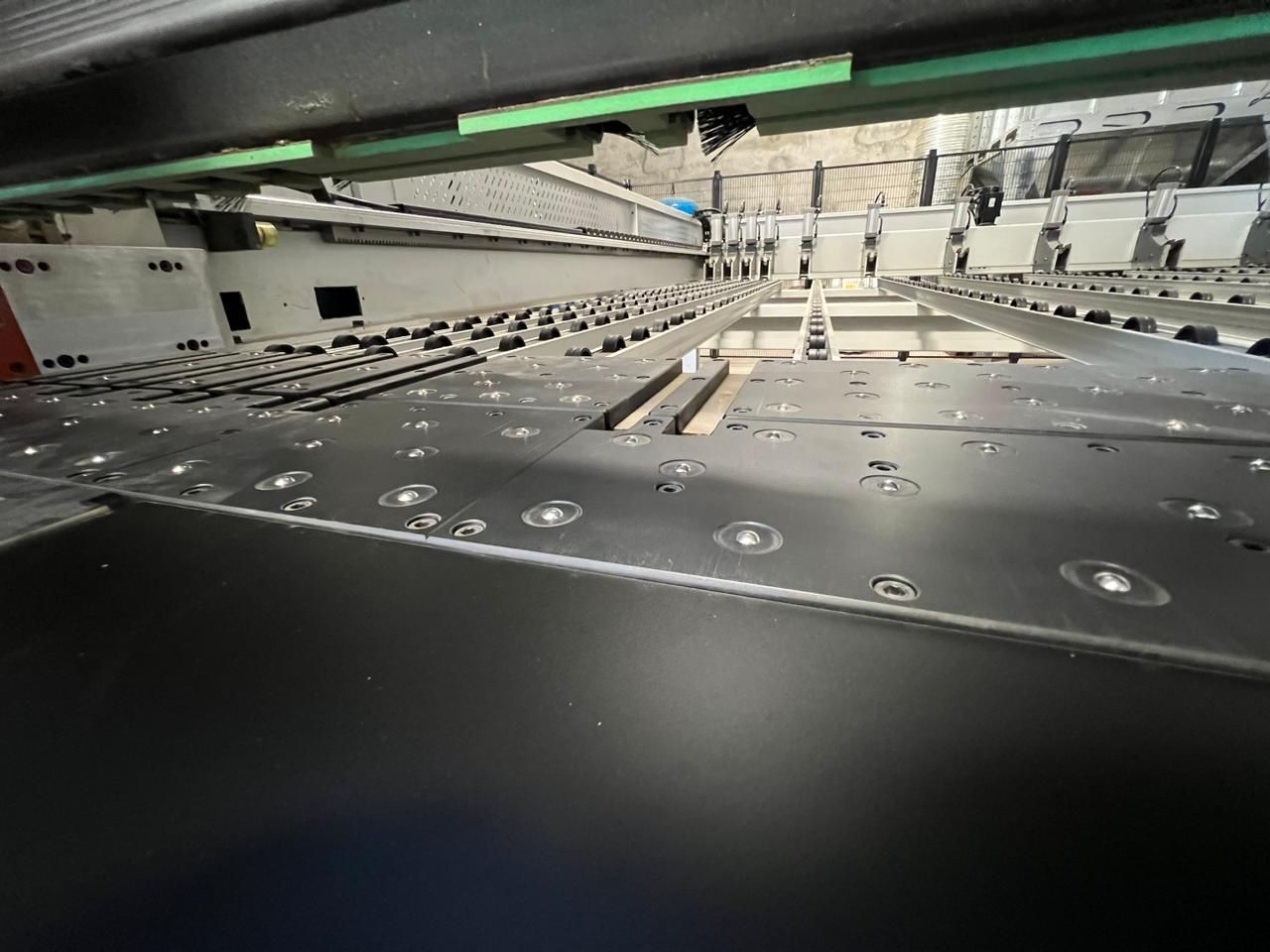

  • Cutting line air cushion
  • Presser beams up/down control upon material thickness.
  • Main blade up/down control upon material thickness
  • 15kw main blade motor
  • Industrial zebra label printer
  • 21-inch screen touch
  • Windows industrial pc
  • Opticut integration
  • Machine size 6000* 7000* 1600mm
  • Weight 5800kg
