PROSAW SK3800-S-AR

PROSAW SK3800-S-AR

$0.00 USD
$0.00 USD
Sale Sold out

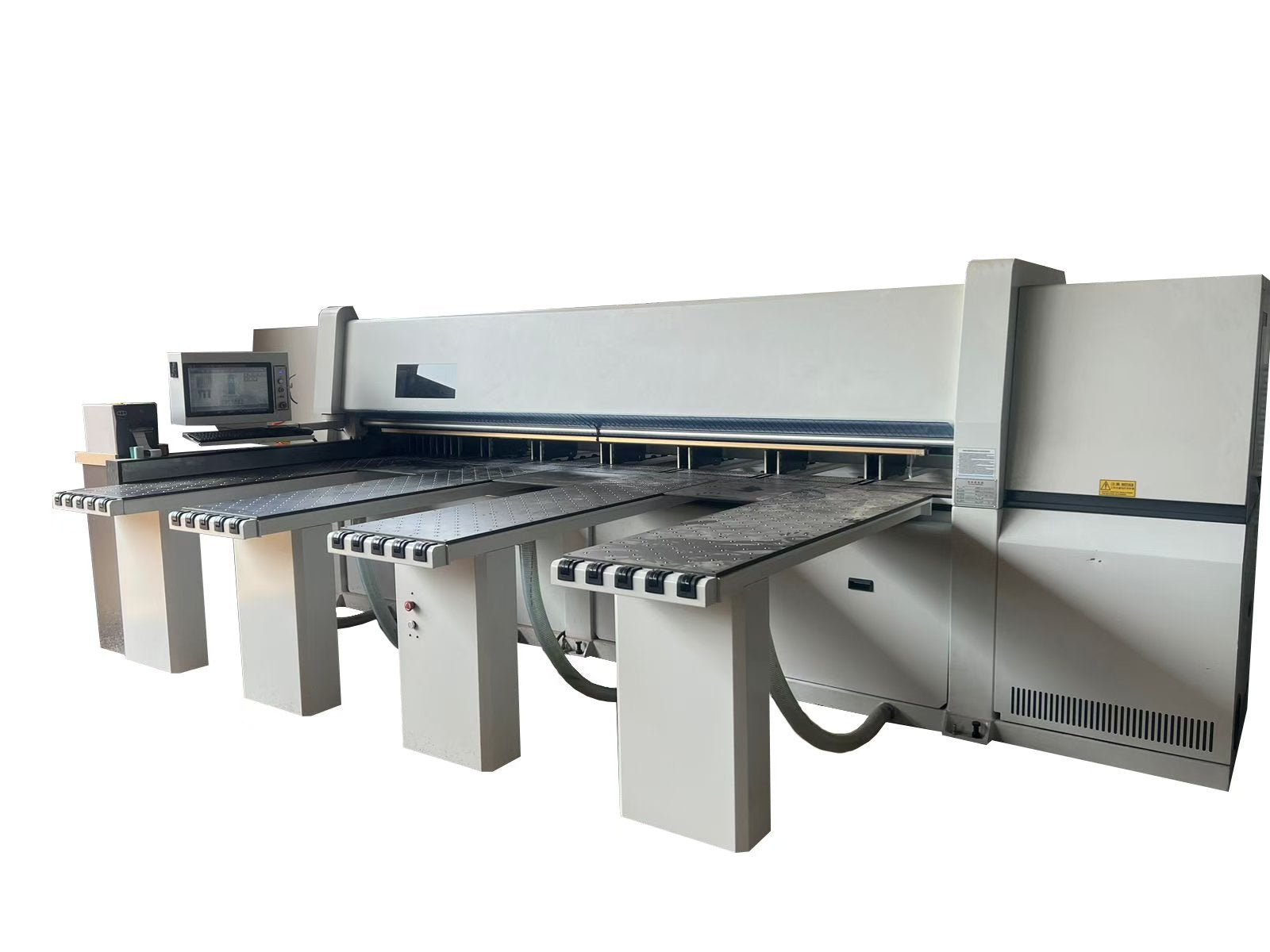

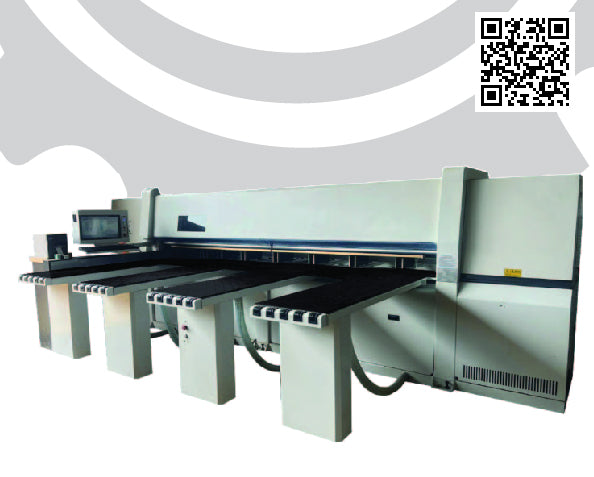

PROSAW-SK3800-S-AR — A heavy-duty 3800 mm sliding panel saw designed for high-precision cutting of large panels.

Built for industrial production, this saw delivers accurate cuts with robust construction and optimized workflow for woodworking and furniture manufacturing applications.

Category Parameter Value
Cutting Max. cutting length 3,800 mm
Max. cutting thickness 90 mm (5 panels 18 mm)
Main Saw Motor power 15 kW – 22 HP
Rotating speed 4,800 rpm/min
Saw blade diameter Φ380 mm (max Φ450)
Saw blade shaft diameter Φ75 mm
Scoring Saw Rotating speed 7000 rpm/min
Saw blade diameter Φ200 mm
Saw blade shaft diameter Φ50 mm
Saw Carriage Motor power 2 kW
Forward speed 80 m/min
Backward speed 100 m/min
Feeding Automatic feeding motor 2 kW
Max. feeding speed 65 m/min
IPC Touch screen 21"
System Windows 7
Connectivity USB port / WiFi connection
Air Requirement Pressure 0.6 MPa
Power Supply AC 3P 380V / 50Hz
Power Total power 27.3 kW
Overall Size Length × Width × Height 7767 × 6000 × 1890 mm
Net Weight 6000 kg
