We are pleased to inform you that we have been appointed as the exclusive agent for the IMAI and PMSK brands in the following countries: Lebanon, United Arab Emirates (UAE), Saudi Arabia (KSA) Ivory Coast, and Poland.

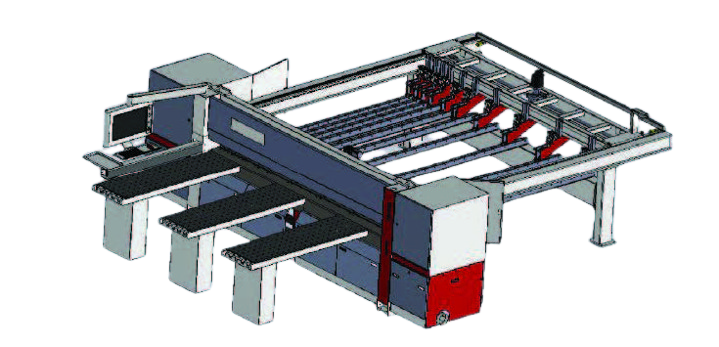

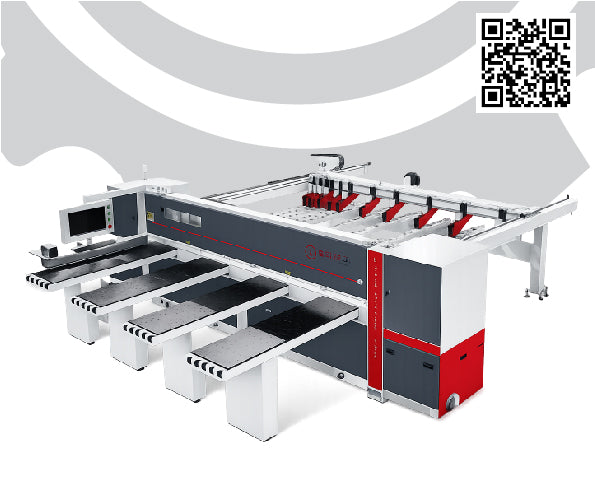

This state-of-the-art panel saw is engineered with a fully servo-driven system, delivering exceptional precision, responsiveness, and energy efficiency. Unlike conventional systems that rely on three-phase electric motors for critical cutting functions, this advanced configuration utilizes servo technology to control:
Saw carriage movement
Feeder positioning
Scoring unit adjustment
Vertical positioning of both scoring and main blades
Main blade and scoring blade motors
This complete servo architecture ensures superior cutting accuracy, faster response times, and optimized power consumption.
High-Speed Performance & Intelligent Motion Control

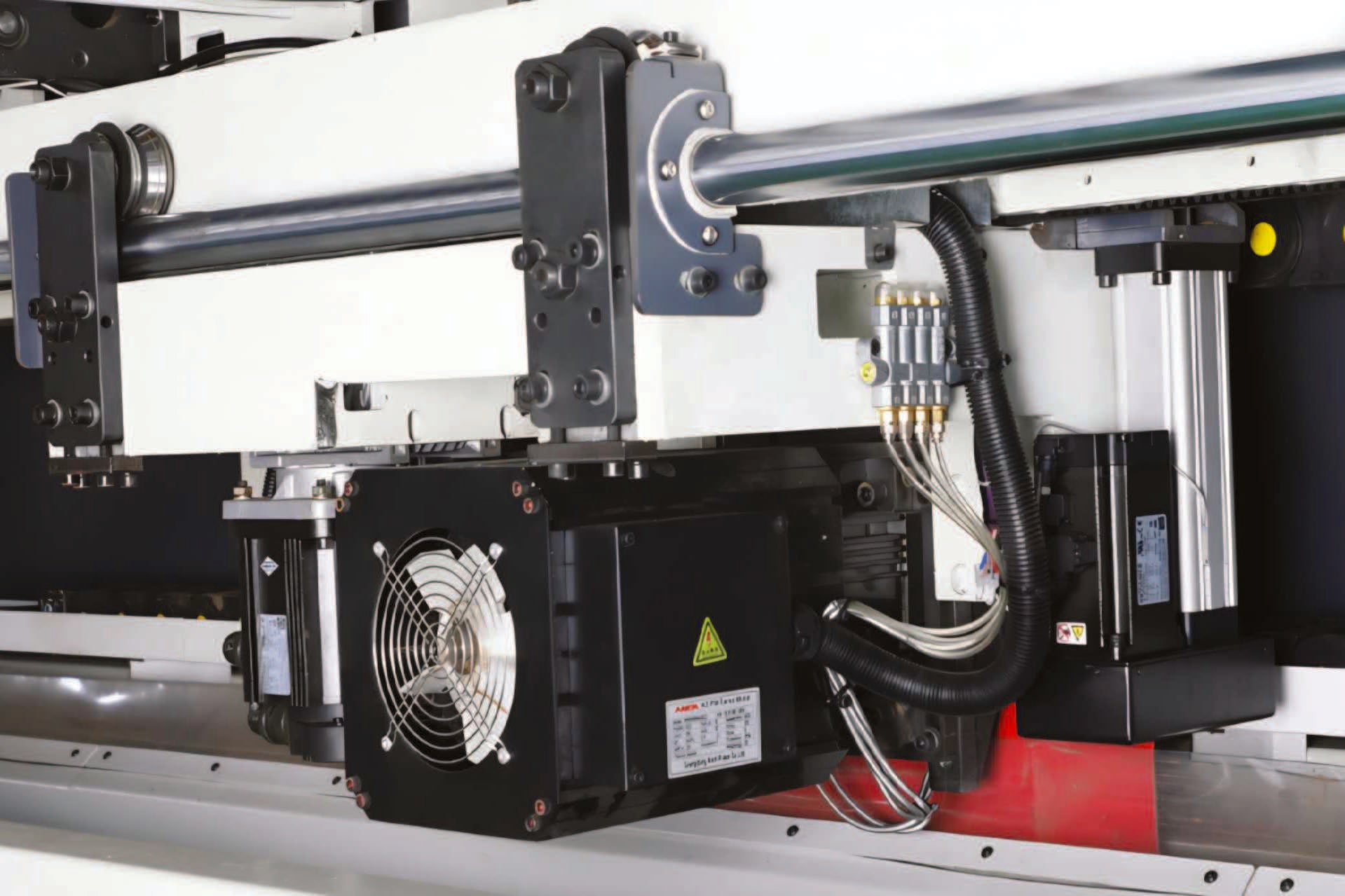

The saw carriage is powered by a 1.8 kW servo motor and guided by a precision rack-and-pinion transmission system. It automatically adjusts its travel based on panel width, minimizing unnecessary movement and maximizing productivity.
Forward speed: up to 80 m/min
Return speed: up to 120 m/min
This intelligent movement control significantly reduces cycle times and increases overall throughput.
The pressure beam further enhances operational efficiency by automatically adjusting to the combined height of stacked panels, optimizing the travel range and reducing idle time.
Smart Software & User-Friendly Operation
A powerful yet intuitive software suite provides full production management, including:
Detailed job reporting
Cutting pattern simulation
Real-time error message display
Barcode printing integration
The user-friendly HMI interface simplifies machine operation while ensuring reliable, consistent performance in demanding production environments.
