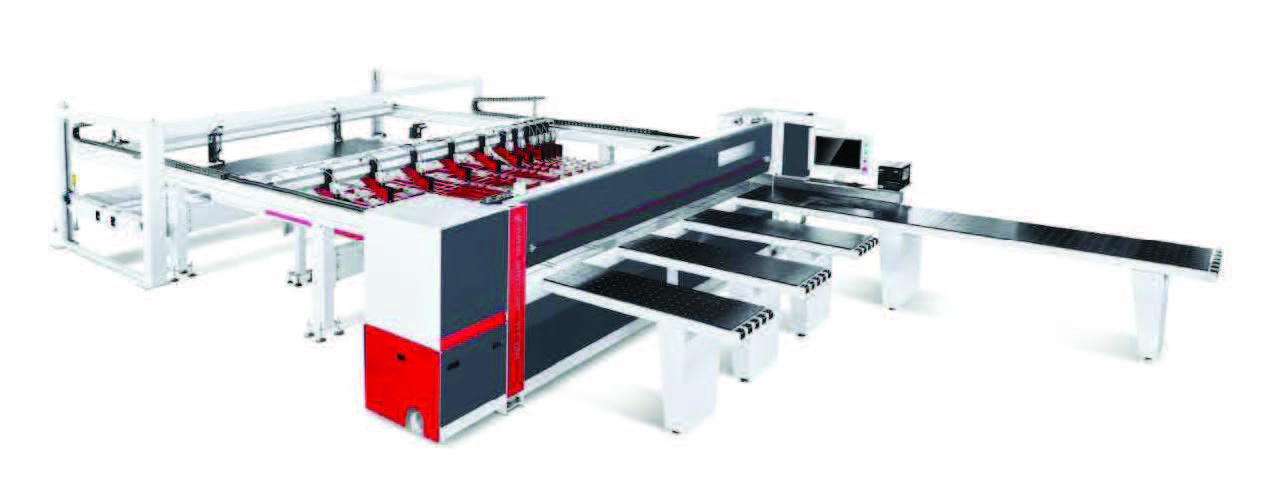

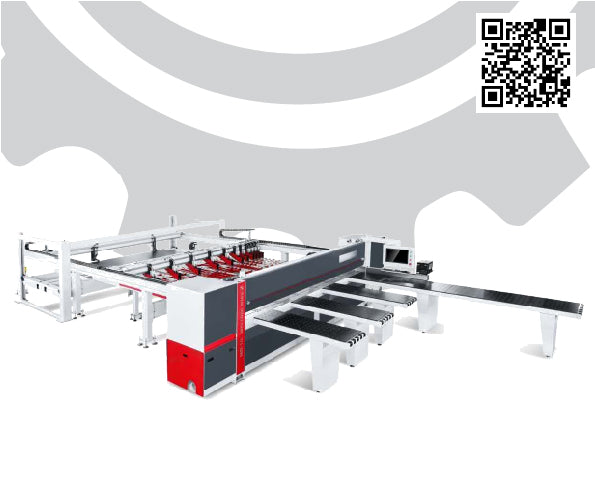

PROSAW U4.2-FSBL-AR

Cutting Capacity

• Maximum Cutting Length: 4,200 mm

• Maximum Cutting Thickness: 120 mm (6 panels × 18 mm)

Main Saw

• Motor Power: 18 kW (22 HP)

• Rotating Speed: 5,800 rpm

• Saw Blade Diameter: Ø380 mm (max Ø450 mm)

• Saw Shaft Diameter: Ø75 mm

Scoring Saw

• Rotating Speed: 7,000 rpm

• Saw Blade Diameter: Ø200 mm

• Saw Shaft Diameter: Ø50 mm

Saw Carriage

• Motor Power: 1.8 kW

• Forward Speed: 80 m/min

• Backward Speed: 120 m/min

Feeding System

• Automatic Feeding Motor: 1.8 kW

• Maximum Feeding Speed: 0–80 m/min

Control System (IPC)

• 21” Touch Screen

• USB Port & WiFi Connection

• Windows 10 Operating System

General Specifications

• Air Requirement: 6 BARS

• Power Supply: AC 3P 380V / 50 Hz

• Total Power: 29.2 kW

• Overall Dimensions: 10,500 × 9,000 × 1,890 mm

• Net Weight: 8,400 kg
