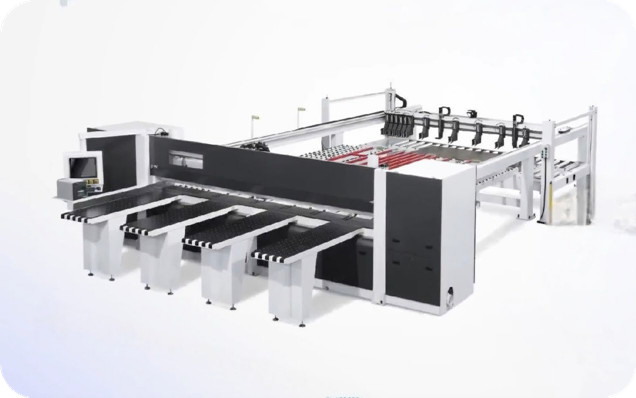

PROSAW U4.2-FSFO-AR

The PROSAW U4.2-FSFO-AR is a high-precision industrial panel saw designed for large-format cutting and high-volume production environments. With a maximum cutting length of 4,200 mm and a cutting thickness capacity of 120 mm (up to 6 panels of 18 mm), this model delivers exceptional productivity and accuracy for modern furniture manufacturing.

Cutting Capacity

• Maximum Cutting Length: 4,200 mm

• Maximum Cutting Thickness: 120 mm (6 panels × 18 mm)

Main Saw Unit

• Motor Power: 18 kW (22 HP)

• Rotating Speed: 5,800 rpm

• Saw Blade Diameter: Ø380 mm (max Ø450 mm)

• Saw Shaft Diameter: Ø75 mm

Scoring Saw Unit

• Rotating Speed: 7,000 rpm

• Saw Blade Diameter: Ø200 mm

• Saw Shaft Diameter: Ø50 mm

Saw Carriage System

• Motor Power: 1.8 kW

• Forward Speed: Up to 80 m/min

• Return Speed: Up to 120 m/min

Feeding System

• Automatic Feeding Motor: 1.8 kW

• Maximum Feeding Speed: 0–80 m/min

Control System (IPC)

• 21” Touch Screen Interface

• USB Port & WiFi Connection

• Windows 10 Operating System
