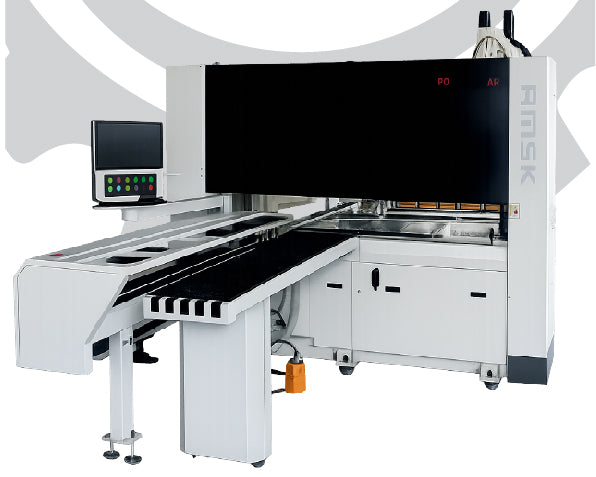

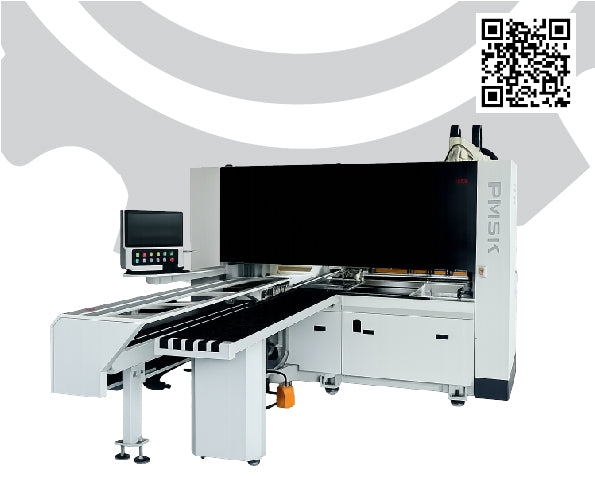

PT6-1225-AR

Processing Size

• Maximum processing size: 1200 mm (board width)

• Minimum processing size: 40 × 180 mm

Feed System

• Maximum feed speed: —

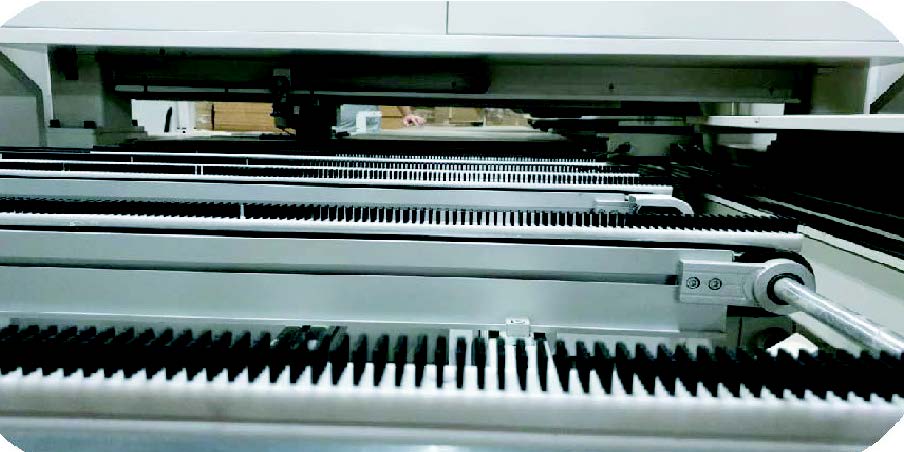

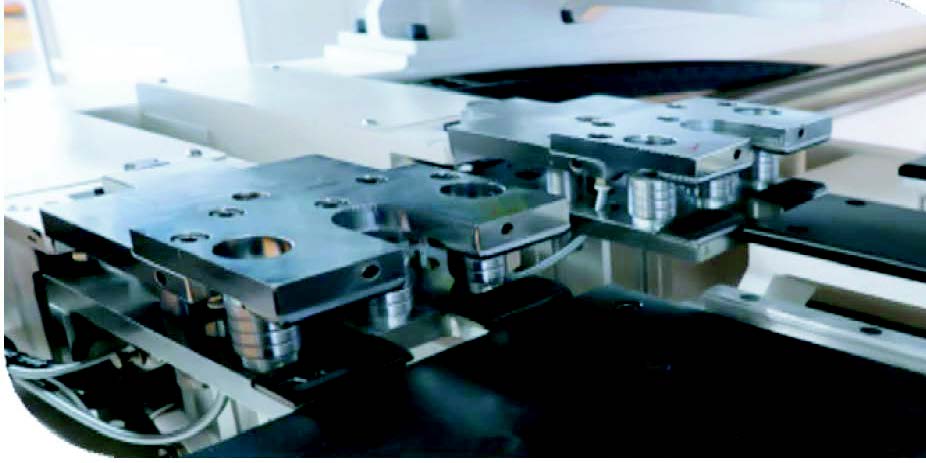

• Frequency-controlled conveyor system

• Transmission rack and drive screw system

Spindle Configuration

• 1 × Upper spindle – 3.5 kW

• 1 × Lower spindle – 3.5 kW

Drilling Unit

• Upper drilling head: 12 vertical + 8 horizontals (12V + 8H)

• Lower drilling head: 9 verticals

Reducer

• Japan Shimpo

Drive & Transmission Components

• Germany Rotalin

• Taiwan TBI

• Hippo

• Monte

• Schneider (main electrical components)

Pneumatic Components

• SMC

• Airtac

Scanner

• American ZEBRA wireless scanner

Countertop Structure

• Air floating table with HPL + chrome plated surface

Axis Travel

• X-axis travel: 3000 mm

• Y-axis travel: 1500 mm

• Z-axis travel: 200 mm

Axis Speed

• X-axis speed: 130 m/min

• Y-axis speed: 85 m/min

• Z-axis speed: 25 m/min

Machine Dimensions

• 3050 × 5700 × 2600 mm

Machine Weight

• 3800 kg

Electrical & Power Requirements

• Working voltage: 3PH AC 380V / 50Hz

• Air pressure: ≥ 0.65 MPa

• Total power: 22 kW

Air & Dust Requirements

• Air consumption: 800 L/min

• Dust collector flow rate: 500 m³/h
