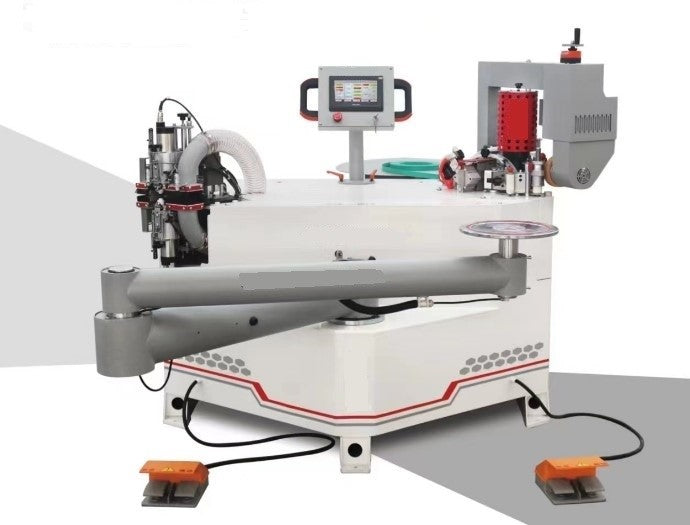

20 ROUND EDGE BANDER KN-700-3-AR

KN-700-3-AR

• CLICK HERE TO DOWNLOAD PDF FILE
• Power supply voltage: 380V/three-phase four wire (3 live+1 neutral)/50Hz
• Total power: 6.5kW
• External dust suction port diameter: 150mm Air volume: 9800m3/h
• Air source pressure: 0.6-0.8Mpa
• Gas storage tank capacity: 2L glue pot, operating temperature: 110 ° C-210 ° C
• glue pot, operating temperature: 110 ° C-210 ° C.
• Rubber pot capacity: 2600ml
• Edge banding speed: 0-30cm/s
• Edge banding thickness: 0.5-3mm (depending on the material of the edge banding)
• Edge banding width: 14-70mm
• Trimming board thickness: <14mm single sided trimming, 14-70mm double trimming (related to trimming knife)
• Minimum radius of inner arc: 20mm (special operation can seal radius of 4mm)
• Types of edge banding: PVC, wood veneer (customized), plastic, melamine, etc
