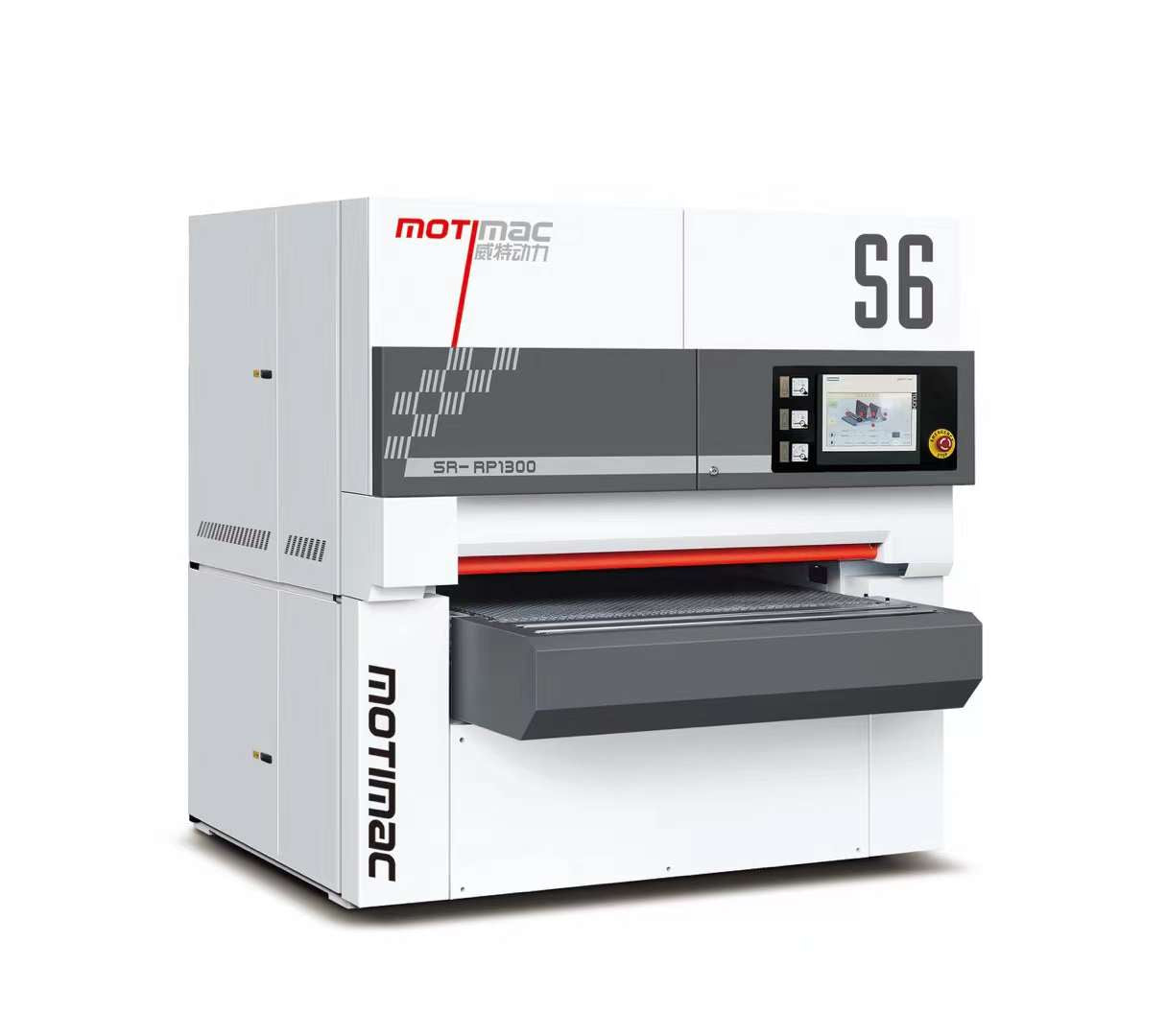

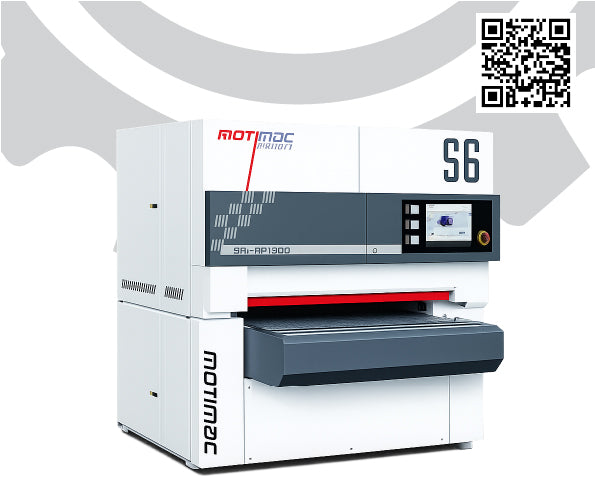

SANDING MACHINE PROSR-FR-1300-AR

PROSR-FR-1300-AR

• Working Width: 1300mm
• Min Working Length: 350 mm.

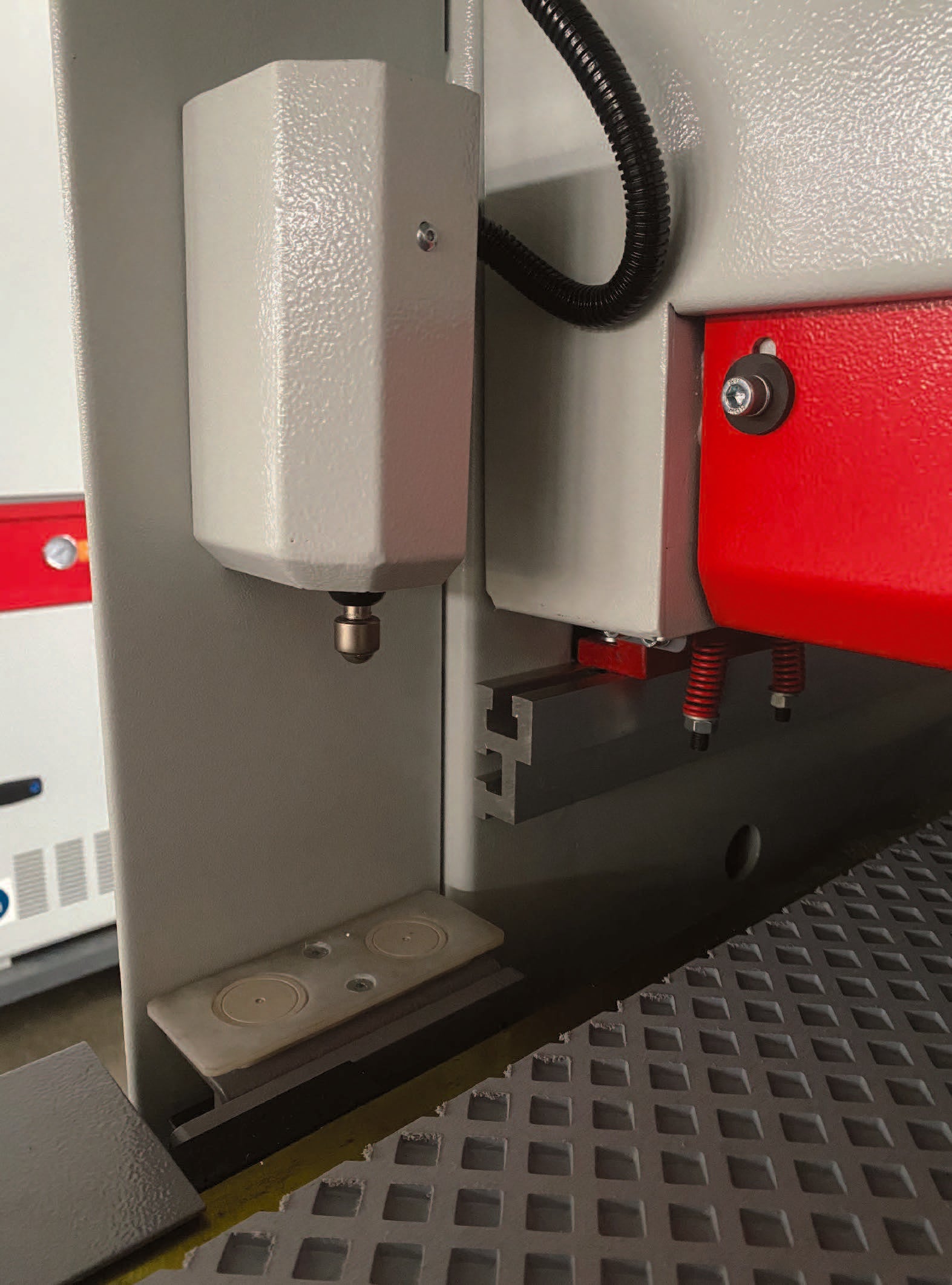

• Working Thickness: 3-100mm
• Feeding Speed5-30m/min
• Total Power: 61Kw
• Motor for First Unit: 30Kw
• Motor for Second Unit: 22Kw
• Feeding Motor: 4Kw
• Lifting Motor: 0.55Kw
• Motor for Brush Roller: 0.55Kw
• Motor for vacuum: 3.7kw

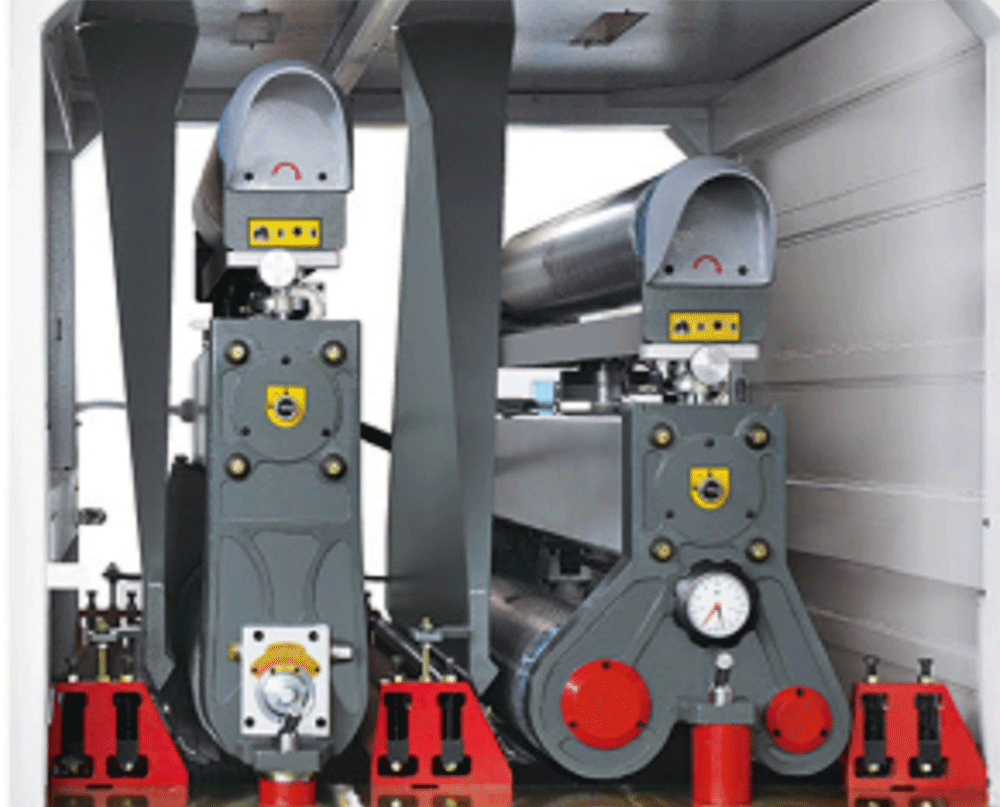

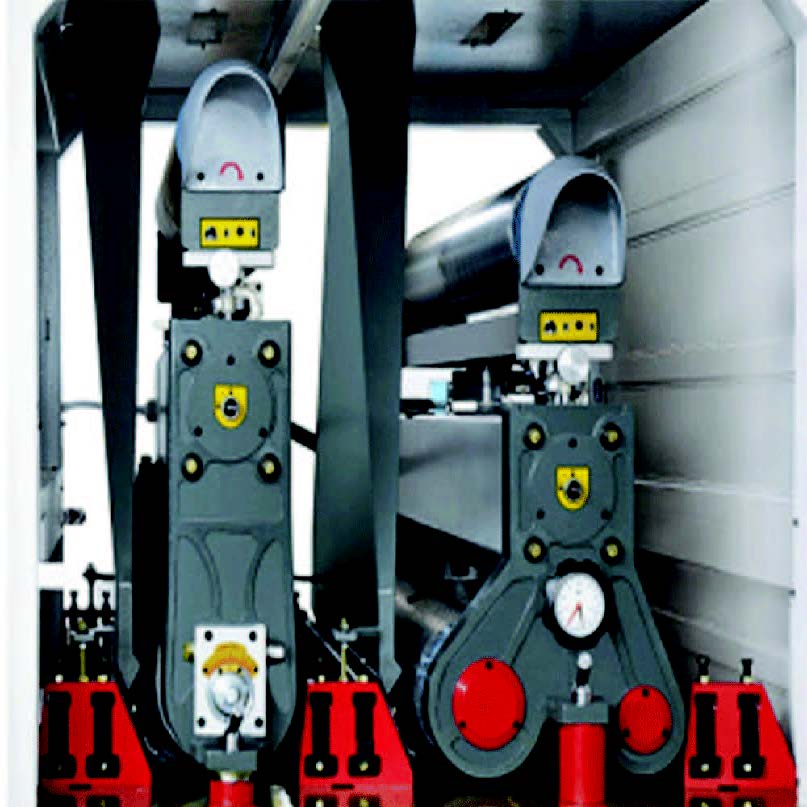

• Hardness of First Roller: 80sh
• Hardness of Second Roller: 55sh
• Diameter of First Roller: Φ300mm
• Diameter of Second Roller: Φ300mm
• Linear Speed of First Roller: 20m/s
• Linear Speed of Second Roller: 20m/s
• Abrasive Belt Size: 1320×2620mm

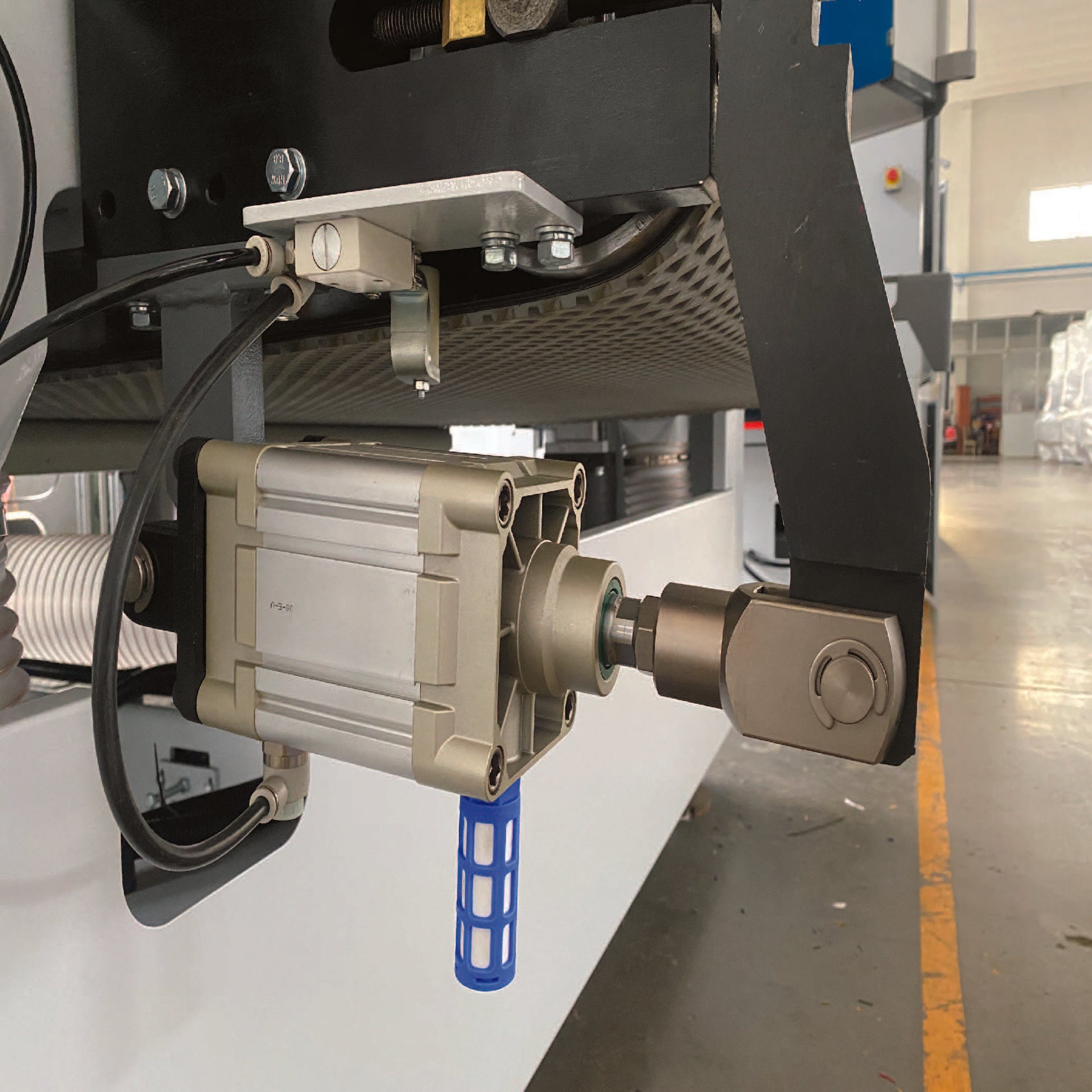

• Working Air Pressure: 0.6Mpa
• Air Consumption: 17m³/h
• Volume of Dust Collection Device: 11190m³/h

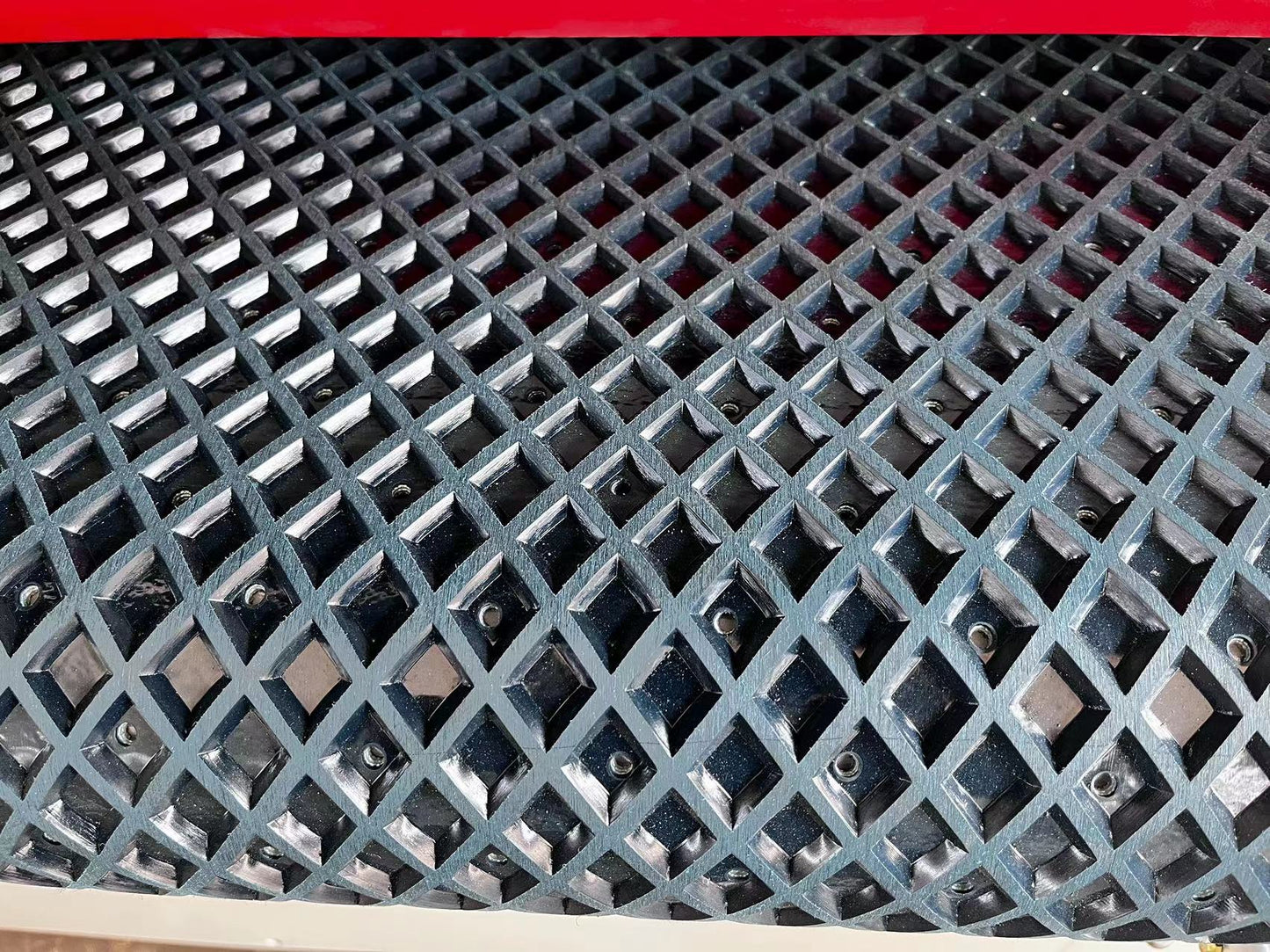

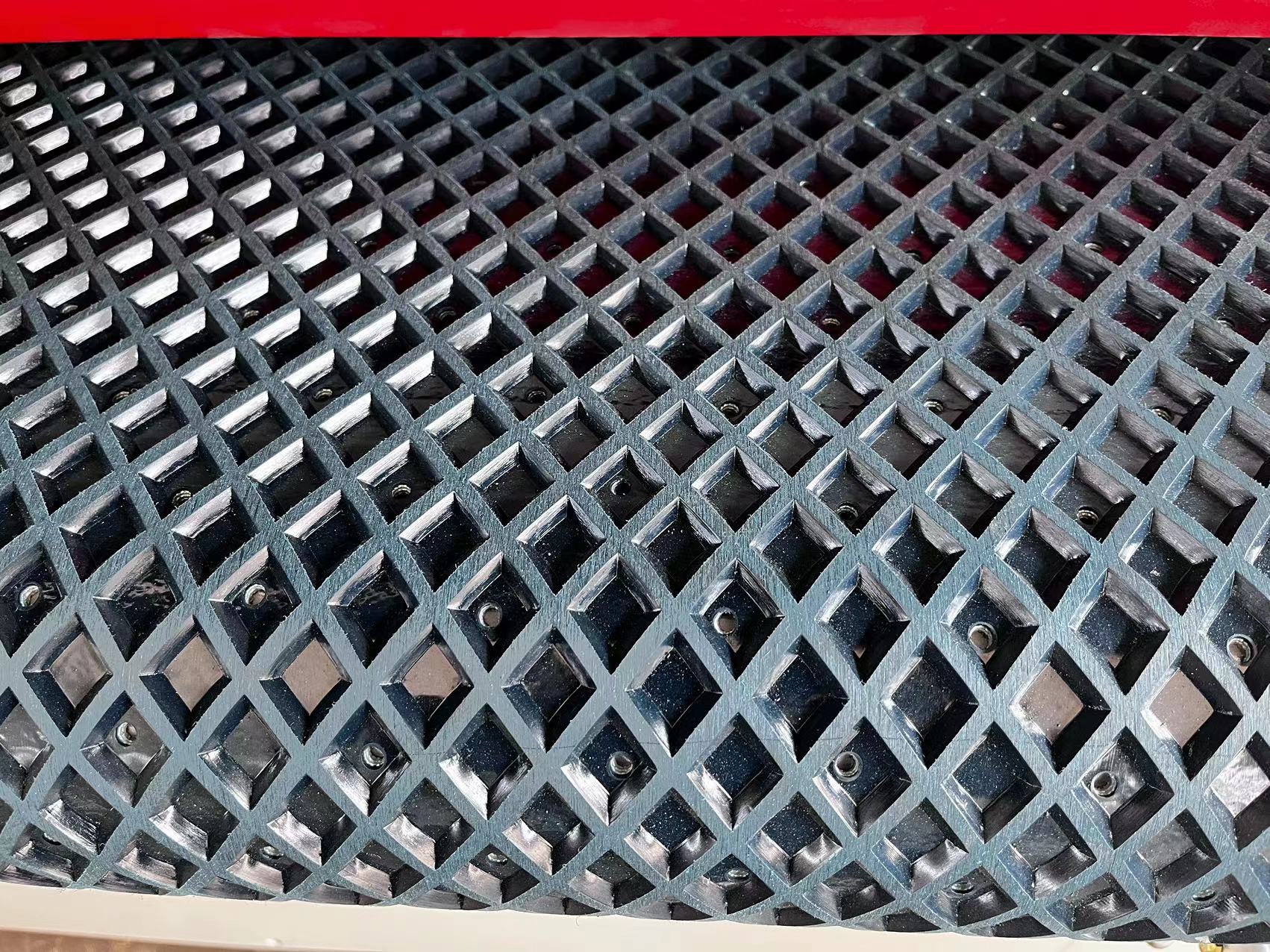

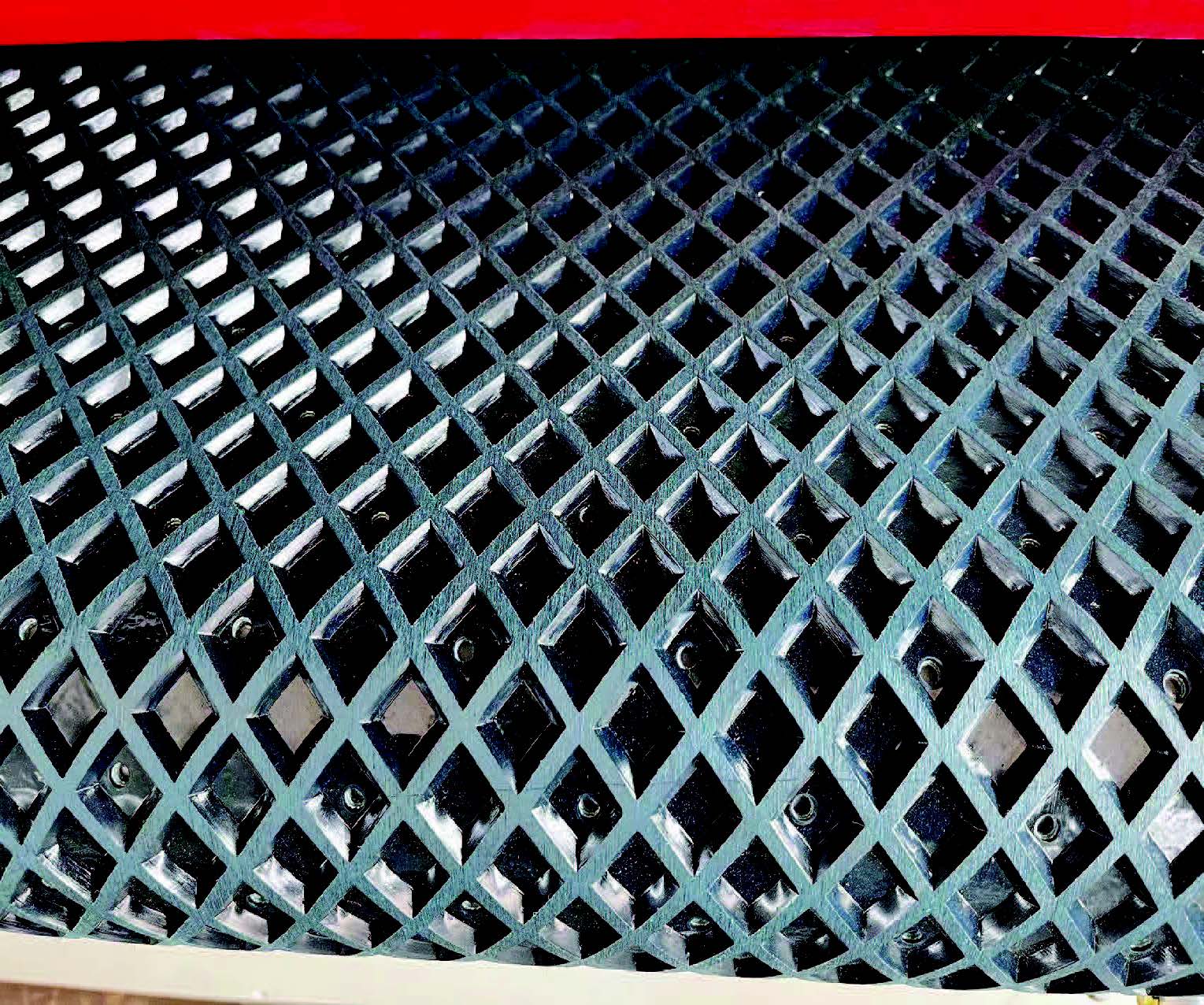

• Vacuum conveyor: Yes
• Air jet cleaner: Yes
• Voltage: 380V/50Hz/3Phase
• Overall Dimensions: 2130×3340×2520mm
• Net Weight: 7500Kgs
