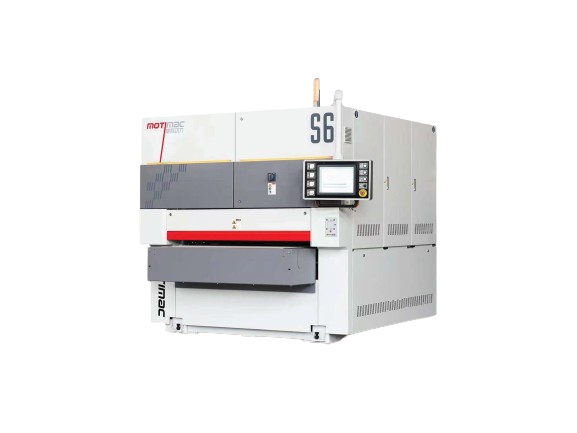

SANDING MACHINE PROSR-WT-RRC-1300-AR

SANDING MACHINE PROSR-WT-RRC-1300-AR

• CLICK HERE TO DOWNLOAD PDF FILE
• Working Width: 1300mm
• Min Working Length: 490mm.
• Working Thickness: 3-150mm
• Feeding Speed:  5-30m/min
• Total Power: 84Kw
• Motor for First Unit: 37Kw
• Motor for Second Unit: 22Kw
• Motor for Third Unit: 18.5Kw
• Feeding Motor: 3.0Kw
• Lifting Motor: 0.55Kw

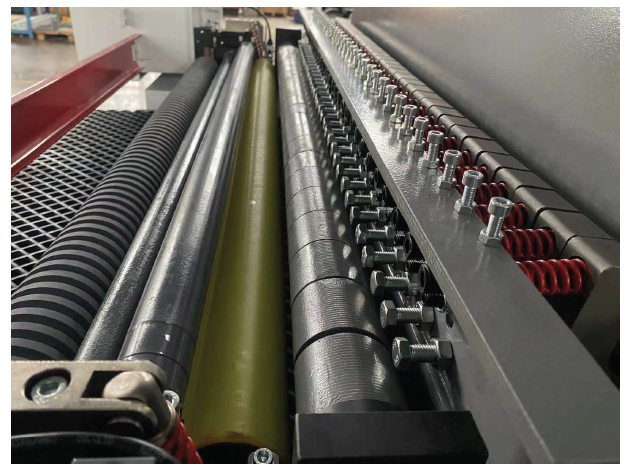

• Shore of First Roller: STEEL ROLLER
• Shore of Second Roller: 80sh
• Shore of Third Roller: 55sh+pad
• Diameter of First Roller: 240mm
• Diameter of Second Roller: 240mm
• Diameter of Third Roller: 170mm
• Abrasive Belt Size: 1350×2620mm
• Working Air Pressure: 0.6Mpa
• Air Consumption: 17m³/h
• Volume of Dust Collection Device: 8200m³/h
• Voltage: 380V/50Hz/3Phase
• Overall Dimensions: 2235×3050×2600mm
• Net Weight: 5700Kgs
