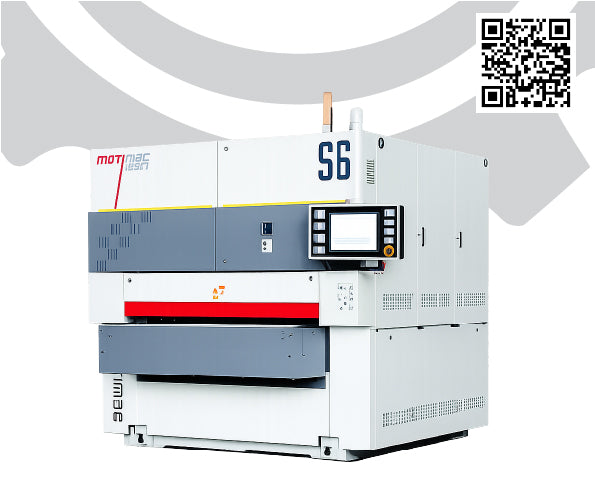

SANDING MACHINE WT-RRC1300-AR

Working Width: 1300 mm
Minimum Working Length: 490 mm
Working Thickness: 1 – 110 mm

Feeding Speed: 5 – 24 m/min

Total Power: 35 kW

Motor Power:

• First Unit Motor: 15 kW (Inverter)

• Second Unit Motor: 11 kW (Inverter)

• Feeding Motor: 3.0 kW

• Lifting Motor: 0.55 kW

• Brush Roller Motor: 1.5 kW

Vacuum Power: 3.7 kW

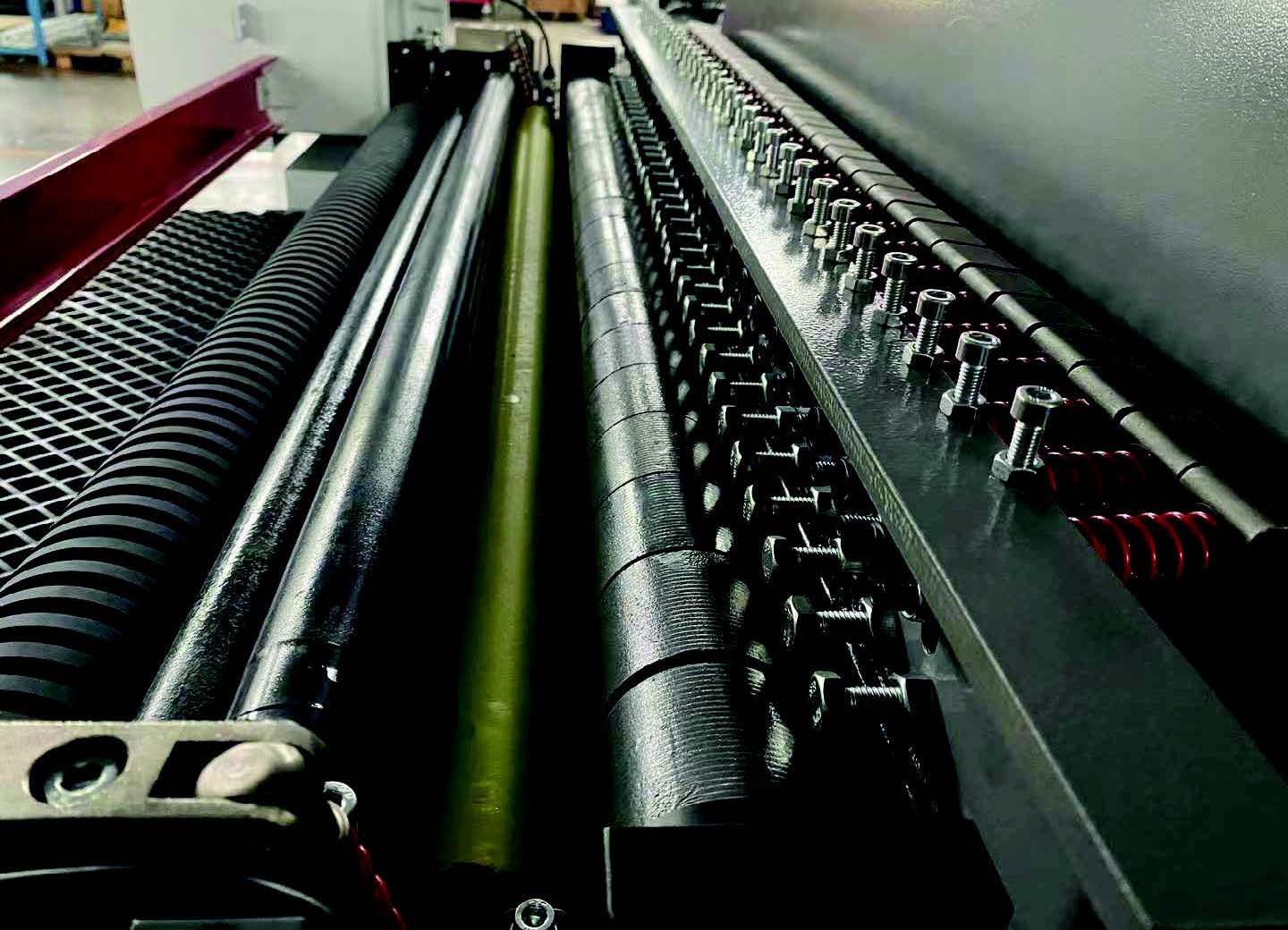

Roller Specifications:

• First Roller Hardness: Steel Roller

• Second Roller Hardness: 26 HA

• First Roller Diameter: Ø240 mm

• Second Roller Diameter: Ø170 mm + PAD (70 mm width)

Abrasive Belt Size: 1350 × 2620 mm

Working Air Pressure: 0.6 MPa

Voltage: 380 V / 60 Hz / 3 Phase

Overall Dimensions: 2235 × 2700 × 2600 mm

Worktable Height: 900 mm

Net Weight: 4600 kg
