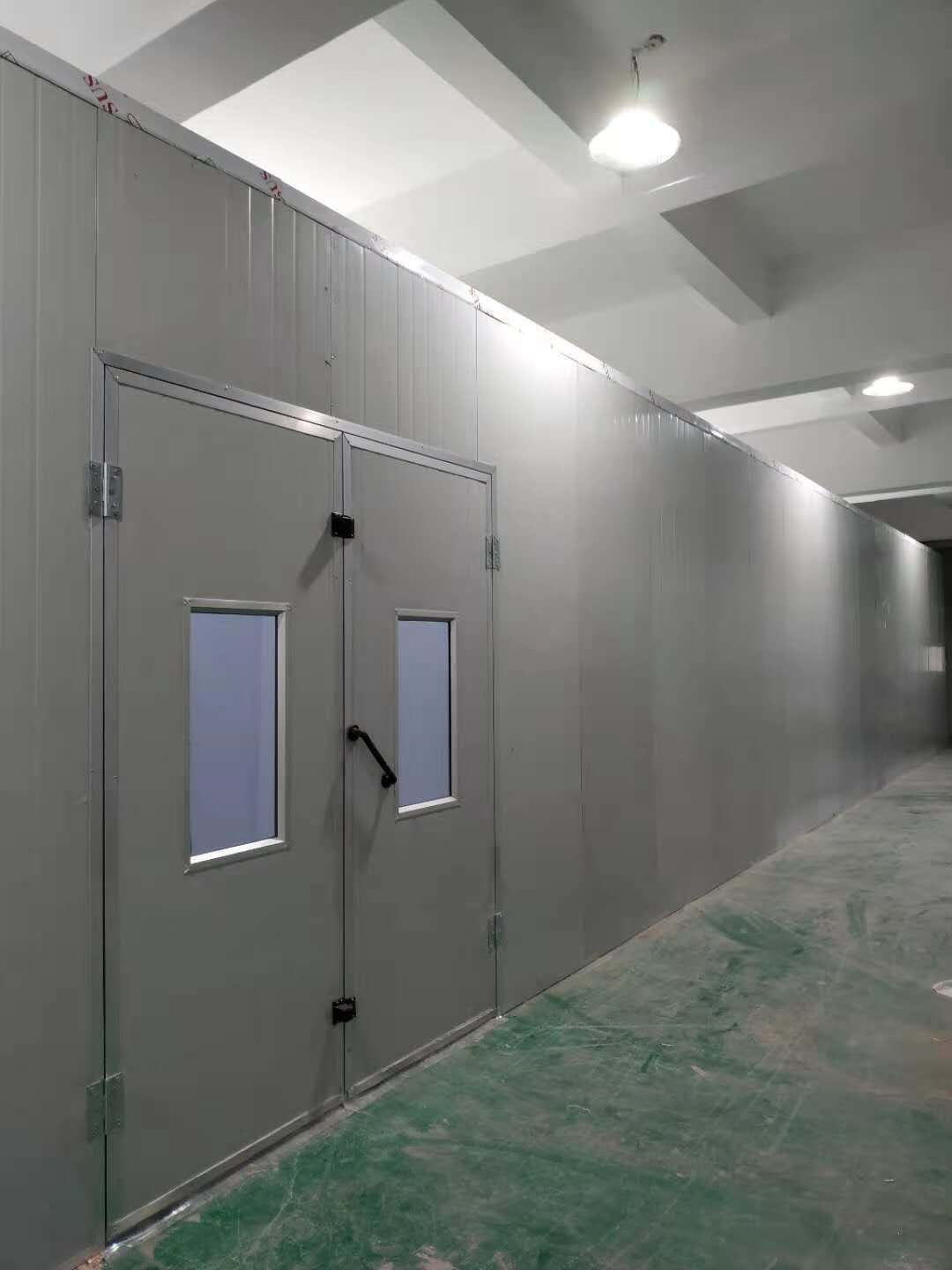

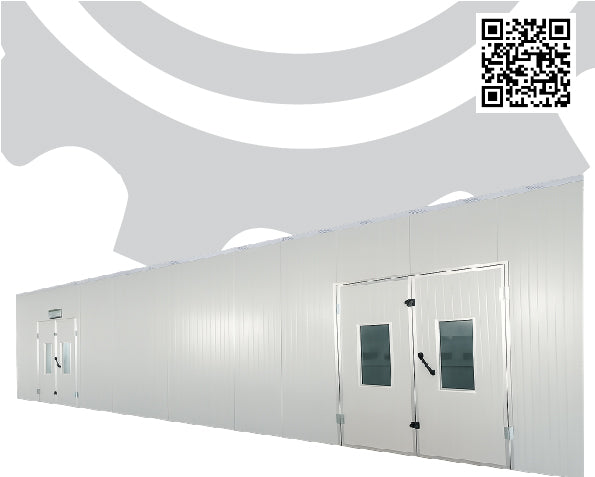

Painting Room
Outer Dimensions: 4000 × 5000 × 3000 mm
House body made of 50 mm flame-retardant foam board , iron sheet thickness 0.5 mm – 1 set
House body fixed beam: welded galvanized square tube (double layer) – 1 set
Auxiliary beam of house body: welded galvanized square tube (single layer) – 1 set
Filter layer: VF600 three-dimensional adhesive filter cotton – 1 set
Top inlet fan: 1.5 kW – 1 set
Lighting: LED shadowless light box – 1 set
Steel grid: 2000 × 4000 mm (including lower support frame) – 8 m²
Side-by-side door: Height 2200 mm × Width 2000 mm – 1 set
Control cabinet – 1 set
Accessories: internal and external corners, hardware fittings, etc. – 1 set
Automatic fire extinguisher – 2 pcs
Finishing Room
Outer Dimensions: 6000 × 5000 × 3000 mm
House body made of 50 mm flame-retardant foam board , iron sheet thickness 0.5 mm (actual ≥ 0.45 mm) – 1 set
House body fixed beam: welded galvanized square tube (double layer) – 1 set
Auxiliary beam of house body: welded galvanized square tube (single layer) – 1 set
Partial filter layer: VF600 three-dimensional adhesive filter cotton – 1 set
Top inlet fan: 1.5 kW – 1 set
Heating system: Heating tubes – 8 groups (24 pcs total)
Lighting: LED lighting tubes – 1 set
Side-by-side door: Height 2200 mm × Width 2000 mm – 1 set
Sliding door: Height 2200 mm × Width 2000 mm – 1 set
Control cabinet – 1 set
Accessories: internal and external corners, hardware fittings, etc. – 1 set
Automatic fire extinguisher – 2 pcs
Water Curtain Cabinet
Outer Dimensions: 3000 × 1150 × 2000 mm – 1 set
Shell material: galvanized steel sheet with plastic spray coating
Sheet thickness: 1.5 mm – 1.8 mm
Flow panel: stainless steel
Self-priming sewage pump: 1.1 kW
Automatic fire extinguisher – 2 pcs
Multi-layer Drying Rack
Outer Dimensions: 1500 × 1200 × 1800 mm – 2 sets
Rotary Table
Diameter: 500 mm
Type: Double bearing
Quantity: 2 units
