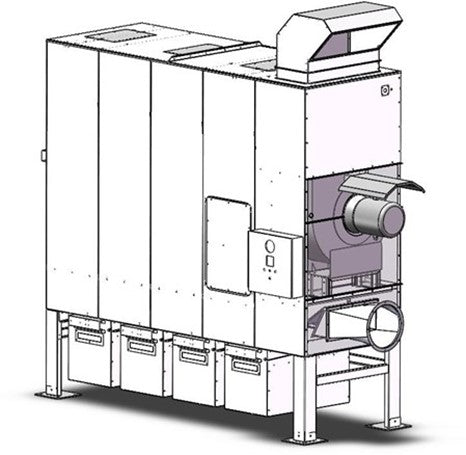

015 SILENT DUST COLLECTOR DMC-S15-AR

CLICK HERE TO DOWNLOAD PDF FILE

•  Dust removal fan: Air volume,15000m³/h, Pressure: 2000pa 3,

  Power: 15kw, Power supply: 380V/50Hz/3P

• Storage Bin: 0.3m3
• Filter Bags & Skeleton: Size: ɸ175*1800mm, Material: Non-woven anti-static cloth bag
• Explosion vent: Size:650*650mm
• Temperature Sensor: An intelligent temperature sensing system is installed at the air outlet and lower box. When the temperature of the dust collector exceeds the safe temperature set by the program, the central control system will automatically shut down, cut off the power supply, isolate oxygen, and prevent explosions.
• Spray: 70C sprays, if a fire occurs in the dust collector and the temperature reaches 70°C, the equipment will alarm and shut down When the temperature reaches 90°C, multiple sprinkler heads installed inside the middle box will automatically open, and the sprinkler device will start spraying water from Inside the dust collector to extinguish the fire
• Filter bag differential pressure detection: -5000 +5000Pa the dust removal equipment is equipped with a pressure difference equipped with a pressure difference meter between the inside and outside of the filter bag. The clogging of the filter bag can be judged by the real-time display of the pressure difference between the inside and outside of the filter bag. There is also an alarm device for monitoring and alarming the air pressure difference between the inlet and outlet.
• Control cabinet: Type: frequency conversion with PLC. It can control ramp-up and ramp-down of the motor during start or stop. PLC can adjust the frequency. It can run the System optimized to be more electric efficient.

  2. Power:15kw 3. Power Supply: 380V /50HZ

  4. With emergency button 5. Touch screen with English display. All of the operations can be set by

  HDMI screen

  you just need to tap the screen to adjust the air volume and other operations 6. All components labled in English

•

  Cleaning method: Vibration cleaning 0.11kw

• Host airtightness: ≤0.5L/h
• Size: 3800*1310*3270 mm(length*width*height)
•       Ambient temperature: -30℃~+50℃
• Relative humidity: 55% maximum monthly average relative humidity, 70% maximum daily average relative humidity
